Extralite Cyber SP hub + Sapim CX-Ray spoke custom road carbon wheels

[Rim Brake] Custom hand built road carbon bicycle wheels with Extralite Cyber straight pull hub + Aero CX-Ray Sapim spokes & nipples. Top Racing level, custom wheel with Extralite SP for the rider looking for the last word in weight reduction.

Item No.:
Extralite-SP-Road-RB
Hub:
Extralite Cyber, straight pull
Spoke:
Sapim CX-Ray, black
Nipple:
Sapim alloy, black or red
Rim:
Carbonal rim brake carbon rims
Lacing:
F - radial, R - non drive side radial, drive side 2 cross
Hole:
Front 20, Rear 24
Brake:
Rim brake
Level:
Top Racing
Standard:
EN standard

Contact now

description

Product Item: Extralite Cyber SP hub + Sapim CX-Ray spoke custom road carbon wheels

Rim:

Carbonal rim brake 700c road bike carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.

5 years warranty.

*Rim brake surface available: 3k twill brake track (recommended ) and basalt brake track.

carbon rim with basalt & 3k twill brake track

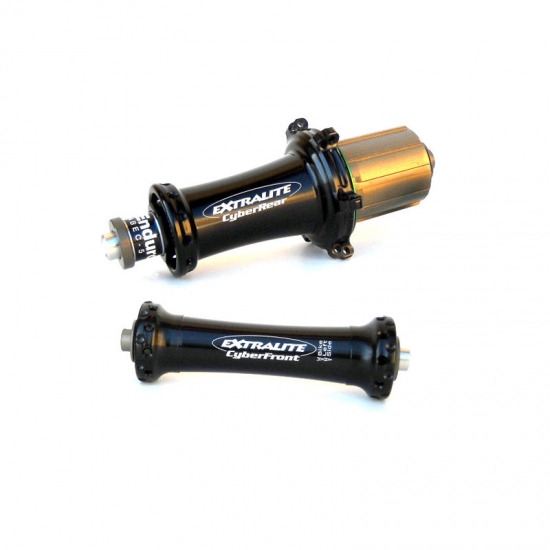

Hub:

Extralite Cyber hub, straight pull;

Size-axle: Front - 100x9mm, Rear - 130x10mm;

Cassette body: Shimano Road 11S / Campy 11S;

Brake system: non disc, rim brake;

Hole: Front 20, Rear 24;

Color: black.

Extralite hubs are absolute performance, sturdy, precise and incredibly light, they are some of the lightest in the industry and should be considered if you are looking to build that special ultra-light, limited use, race-event bicycle wheels.

Spoke:

Sapim CX-Ray aero bladed spokes, straight pull, black.

Nipple:

Sapim alloy nipples, black or red.

Lacing:

Front wheel - radial;

Rear wheel - non drive side radial, drive side 2 cross.

Weight:

Hub: 184g/set;

Spokes + nipples: 200g;

Weight without rims: 384g.

Rim model vs Complete wheel weight:

Model	Rim type	Rim weight / pc	Complete wheel weight (±5%) / set	Max weight limit
RT20W	700c tubular 20x23mm	250g	884g	85kgs
RT30S	700c tubular 30x25mm	310g	1004g	115kgs
RT38S	700c tubular 38x25mm	360g	1104g	120kgs
RT38D	700c tubular 38x25mm- asymmetric	360g	1104g	120kgs
RT50S	700c tubular 50x25mm	410g	1204g	125kgs
RT50D	700c tubular 50x25mm- asymmetric	410g	1204g	125kgs
RT60S	700c tubular 60x25mm	470g	1324g	130kgs
RT88S	700c tubular 88x25mm	530g	1444g	135kgs
RX30SH	700c clincher 30x25mm	430g	1244g	115kgs
RX38SH	700c clincher 38x25mm	470g	1324g	120kgs
RX38DH	700c clincher 38x25mm - asymmetric	470g	1324g	120kgs
RX45SH	700c clincher 45x25mm	480g	1344g	125kgs
RX50SH	700c clincher 50x25mm	500g	1384g	125kgs
RX50DH	700c clincher 50x25mm - asymmetric	500g	1384g	125kgs
RX60SH	700c clincher 60x25mm	570g	1524g	130kgs
RX88SH	700c clincher 88x25mm	720g	1824g	135kgs
RX38LH	700c clincher 38x28mm	480g	1344g	120kgs
RX50LH	700c clincher 50x28mm	510g	1404g	125kgs

* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples, carbon-specific brake pads.

* All clincher rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.

Choose your favorite road carbon rim model, leave a message below with the rim model number (such as RT30S) to get a best quote for your next high end carbon road bicycle wheels!
