Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.
DetailsItem D21-50, weight 425g / 460g, ERD 545mm. Featuring a wide 28mm external rim width, this tubeless ready 50mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.
DetailsItem D24-28HX (GZX28), weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.
DetailsItem D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem D22-40X, weight 390g, ERD 565mm. New 2.5mm offset asymmetric 29er/700C 40mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-39, weight 410g, ERD 567mm. Tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclocross bike tire choices. It's one of the best rim possible for long distance gravel racing or riding.
Details
Dear Valued Customer, We trust this correspondence finds you in excellent spirits. It is with great pleasure that we share our upcoming holiday schedule and key updates at Carbonal. Holiday Schedule &...
Item No.:
D411412SB-P1420-DBHub:
Novatec D411SB & D412SB, Straight pullSpoke:
Pillar Aero X-TRA 1420Nipple:
Pillar alloyRim:
Carbonal disc brake carbon rimsLacing:
F - 2 cross, R - 2 crossHole:
24 / 24Brake:
Disc brakeLevel:
Eco RacingStandard:

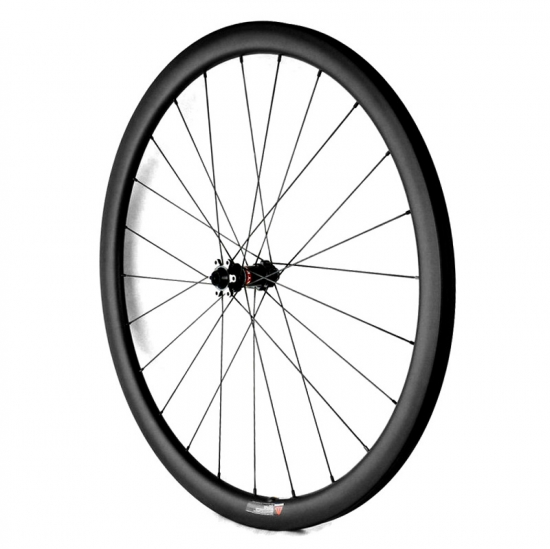

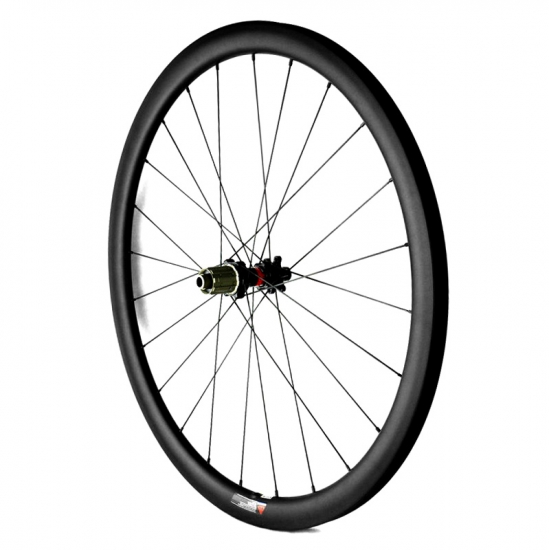

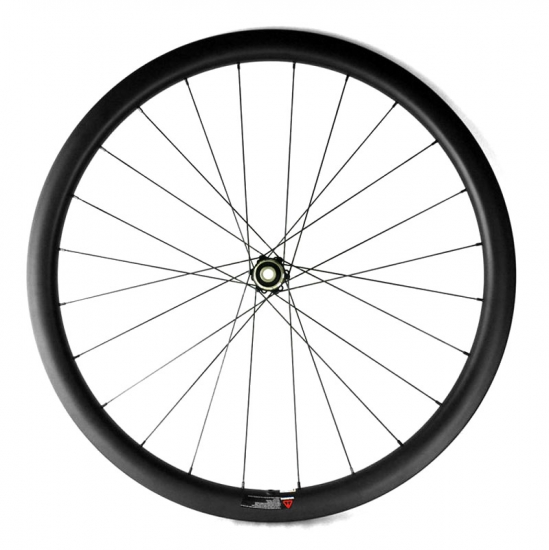

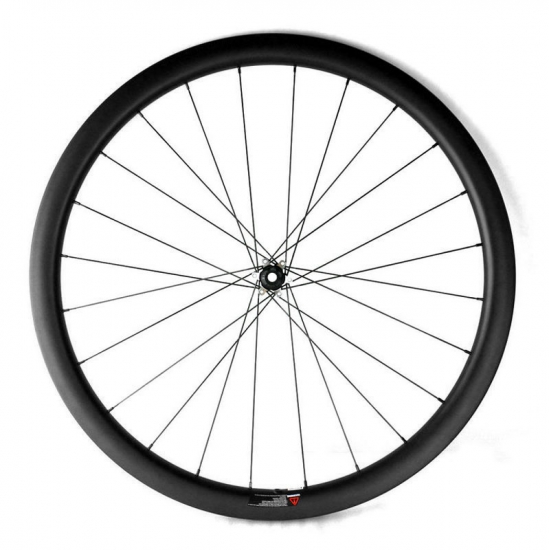

EN standardProduct Item: Novatec D411 & D412 hub + Pillar 1420 spoke custom road disc carbon wheels
Rim:
Carbonal disc brake carbon rims tubular & clincher tubeless. With
the best blend of lightweight, aerodynamic, high stiffness and great
strength to deliver the highest possible efficiency.
Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see rims in different carbon weaves.
5 years warranty.
Hub:

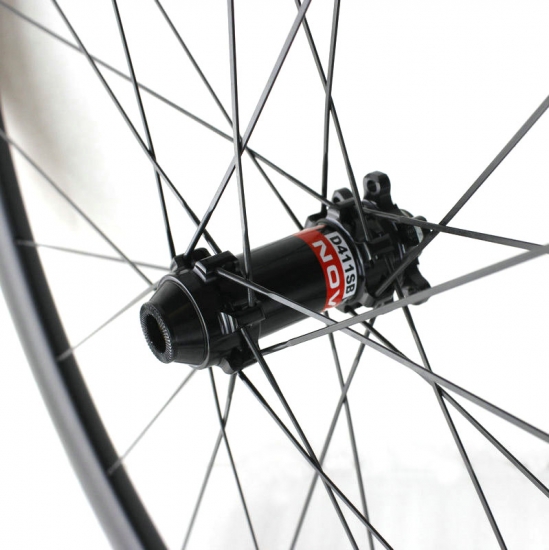

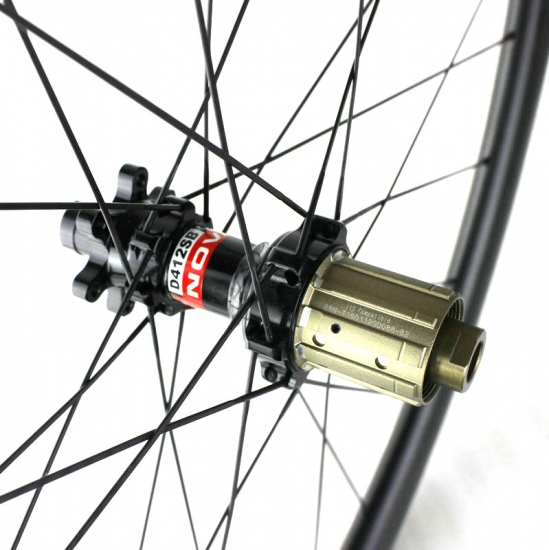

Novatec D411SB or D411SBCL front, D412SB or D412SBCL rear hub, straight pull;
Axle system: QR*100mm & QR*135mm / 12*100mm & 12*142mm;
Cassette body: Shimano Road 11S;
Brake system: Disc 6 bolts / Disc center lock;
Hole: Front- 24, Rear - 24;
Color: black.
Spoke:
Pillar Aero X-TRA 1420, straight pull, black;
Nipple:
Pillar alloy, black.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Weight:
Hub: 322g/set;
Spokes + nipples: 218g;
Weight without rims: 540g.
Rim model vs Complete wheel weight:
|
Model |
Rim type |
Rim weight / pc |
Complete wheel weight (±5%) / set |
Max weight limit |
|
DX30S |
700c clincher 30x25mm |
370g |
1280g |
115kgs |
|
DX38S |
700c clincher 38x25mm |
400g |
1340g |
120kgs |
|
DX38D |
700c clincher 38x25mm- asymmetric |
400g |
1340g |
120kgs |
|
DX45S |
700c clincher 45x25mm |
430g |
1400g |
125kgs |
|
DX50S |
700c clincher 50x25mm |
450g |
1440g |
125kgs |
|
DX50D |
700c clincher 50x25mm - asymmetric |
450g |
1440g |
125kgs |
|
DX60S |
700c clincher 60x25mm |
500g |
1540g |
130kgs |
|
DX88S |
700c clincher 88x25mm |
680g |
1900g |
135kgs |
|
DX38L |
700c clincher 38x28mm |
410g |
1360g |
120kgs |
|
DX42L |
700c clincher 42x28mm |
430g |
1400g |
125kgs |
|
DX50L |
700c clincher 50x28mm |
460g |
1460g |
125kgs |
|
DX60L |
700c clincher 60x28mm |
530g |
1600g |
130kgs |
|
DT30S |
700c tubular 30x25mm |
290g |
1120g |
115kgs |
|
DT38S |
700c tubular 38x25mm |
330g |
1200g |
120kgs |
|
DT38D |
700c tubular 38x25mm- asymmetric |
330g |
1200g |
120kgs |
|
DT50S |
700c tubular 50x25mm |
360g |
1260g |
125kgs |
|
DT50D |
700c tubular 50x25mm- asymmetric |
360g |
1260g |
125kgs |
|
DT60S |
700c tubular 60x25mm |
430g |
1400g |
130kgs |
|
DT88S |
700c tubular 88x25mm |
530g |
1600g |
135kgs |
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite rim model, leave a message below with the rim model number to get a best quote for your next carbon road disc wheelset!
