700c road disc bike rim asymmetrical 2.5mm offset clincher tubeless ready

Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.

Details

Aero disc road bike rim 28mm wide 50mm deep clincher tubeless

Item D21-50, weight 425g / 460g, ERD 545mm. Featuring a wide 28mm external rim width, this tubeless ready 50mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.

Details

Asymmetric 29er hookless 29mm wide 28mm deep carbon rim for gravel bike

Item D24-28HX (GZX28), weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.

Details

29er disc bike rims 24mm inner width 38mm depth hookless for cyclocross and gravel bikes

Item D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.

Details

700c 29er disc 22mm wide 35mm deep clincher rim for road and gravel bike

Item D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.

Details

700c disc bike asymmetrical 22mm internal width 40mm deep clincher rim

Item D22-40X, weight 390g, ERD 565mm. New 2.5mm offset asymmetric 29er/700C 40mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.

Details

29er asymmetrical rim profile 30mm internal width XC bike carbon rim

Item XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.

Details

700c gravel bike disc 24mm internal width 39mm deep clincher carbon rim

Item D24-39, weight 410g, ERD 567mm. Tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclocross bike tire choices. It's one of the best rim possible for long distance gravel racing or riding.

Details

Latest news

2024 National Day Holiday Notice

Dear Valued Customer, We trust this correspondence finds you in excellent spirits. It is with great pleasure that we share our upcoming holiday schedule and key updates at Carbonal. Holiday Schedule &...

[ 06 / 06 ]2024 Eurobike booth at Hall 9.1-A30, welcome to vist us!
[ 08 / 28 ]What width of rim tape should I use for my wheels？
[ 03 / 06 ]2024 Taipei Cycle booth at S0408-Hall 2, welcome to vist us!

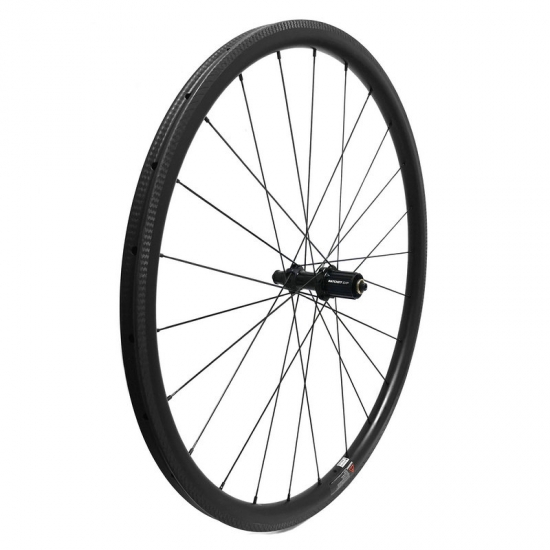

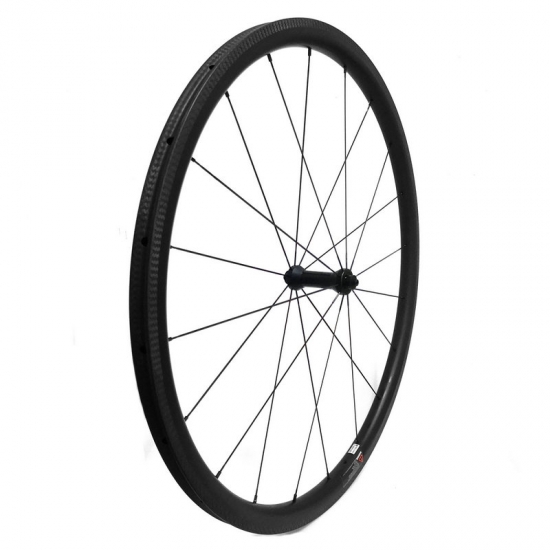

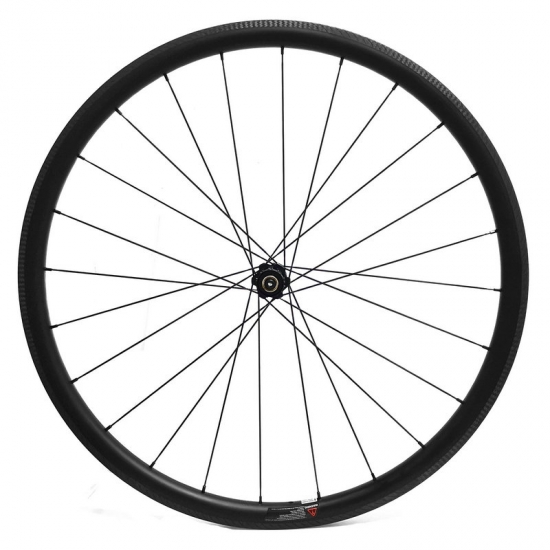

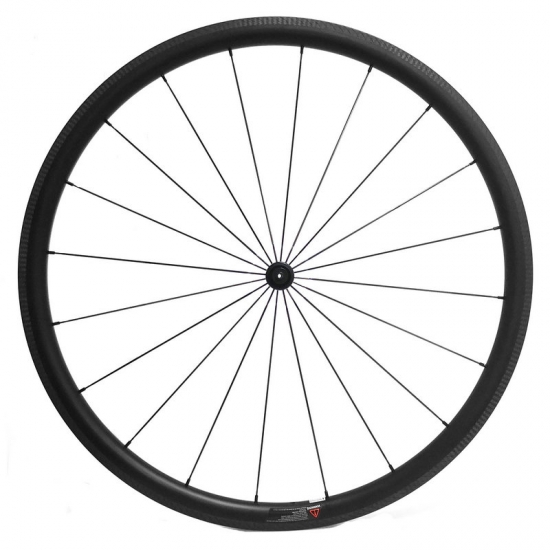

DT Swiss 180 hub + Sapim CX-Ray spoke custom road bike carbon wheels

[Rim Brake] Custom build road bike carbon wheel with DT Swiss 180 EXP hub + Aero CX-Ray Sapim spokes & nipples. Top Racing level, super-lightweight and super smooth, ready for the demands of the world's fastest racers.

Item No.:
DT180-SP-RB
Hub:
DT Swiss 180 EXP hub
Spoke:
Sapim CX-Ray, black
Nipple:
Sapim alloy, black
Rim:
Carbonal rim brake carbon rims
Lacing:
F - radial, R - drive side 2 cross, non-drive side radial.
Hole:
Front 20, Rear 24
Brake:
Rim brake
Level:
Top Racing
Standard:
EN standard

Contact now

description

Product Item: DT Swiss 180 EXP hub + Sapim CX-Ray spoke custom road bike carbon wheels.

Rim:

Carbonal rim brake 700c road bike carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.

5 years warranty.

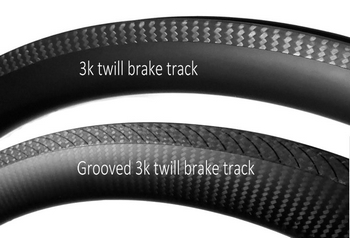

*Rim brake surface available: 3k twill or grooved 3k twill surface.

carbon rims with grooved 3k twill brake track

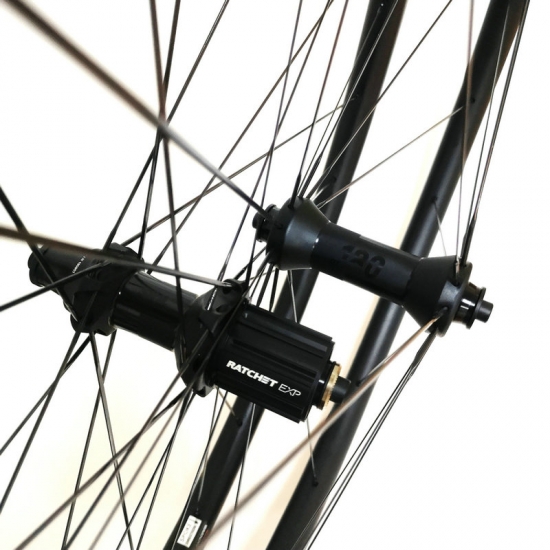

Hub:

DT Swiss 180 EXP hub, Straight pull;

Axle-size: Front - 100x9mm QR, Rear - 130x10mm QR;

Freehub system: Ratchet EXP 36;

Cassette body: Shimano Road 11S / Sram XDR;

Brake system: non disc, rim brake;

Hole: Front 20, Rear 24;

Color: black.

The 180 Carbon Ceramic hubs feature all of DT Swiss highest end technologies, they are ready for the demands of the world's fastest racers. Super-lightweight due to its carbon hubshell and the extensively machined aluminum parts, super smooth with DT Swiss contactless seals and SINC ceramic bearings.

Spoke:

Sapim CX-Ray spokes, Straight pull, black;

Nipple:

Sapim alloy nipples, external / internal, red / black.

Lacing:

Front wheel - radial;

Rear wheel - 2 cross.

Weight:

Hub: 288g/set;

Spokes + nipples: 200g;

Weight without rims: 488g.

Rim model vs Complete wheel weight:

Model	Rim type	Rim weight / pc	Complete wheel weight (±5%) / set	Max weight limit
RX30SH	700c clincher 30x25mm	430g	1348g	115kgs
RX38SH	700c clincher 38x25mm	470g	1428g	120kgs
RX38DH	700c clincher 38x25mm- asymmetric	470g	1428g	120kgs
RX45SH	700c clincher 45x25mm	480g	1448g	125kgs
RX50SH	700c clincher 50x25mm	500g	1488g	125kgs
RX50DH	700c clincher 50x25mm - asymmetric	500g	1488g	125kgs
RX60SH	700c clincher 60x25mm	560g	1608g	130kgs
RX88SH	700c clincher 88x25mm	720g	1928g	135kgs
RX38L	700c clincher 38x28mm	480g	1448g	120kgs
RX50L	700c clincher 50x28mm	510g	1508g	125kgs
RT30S	700c tubular 30x25mm	310g	1108g	115kgs
RT38S	700c tubular 38x25mm	360g	1208g	120kgs
RT38D	700c tubular 38x25mm- asymmetric	360g	1208g	120kgs
RT50S	700c tubular 50x25mm	410g	1308g	125kgs
RT50D	700c tubular 50x25mm- asymmetric	410g	1308g	125kgs
RT60S	700c tubular 60x25mm	470g	1428g	130kgs
RT88S	700c tubular 88x25mm	530g	1548g	135kgs
