Item No.:
DT350-SP-RBHub:
DT Swiss 350 hub, straight pullSpoke:
Sapim CX-Ray, blackNipple:
Sapim alloy, black or redRim:
Carbonal rim brake carbon rimsLacing:
F - radial, R - 2 crossHole:
Front 20, Rear 24Brake:
Rim brakeLevel:
Mid RacingStandard:

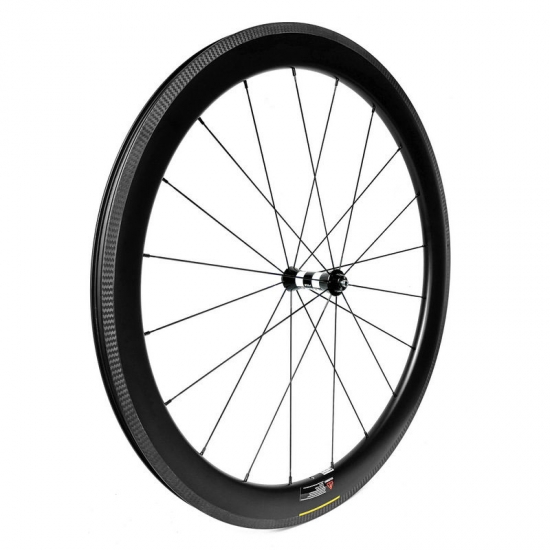

EN standardProduct Item: DT Swiss 350 SP hub + Sapim CX-Ray spoke custom road bicycle wheelset
Rim:
Carbonal rim brake 700c road carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.
5 years warranty.
*Rim brake surface available: 3k twill brake track (recommended
) and basalt brake track.
Hub:

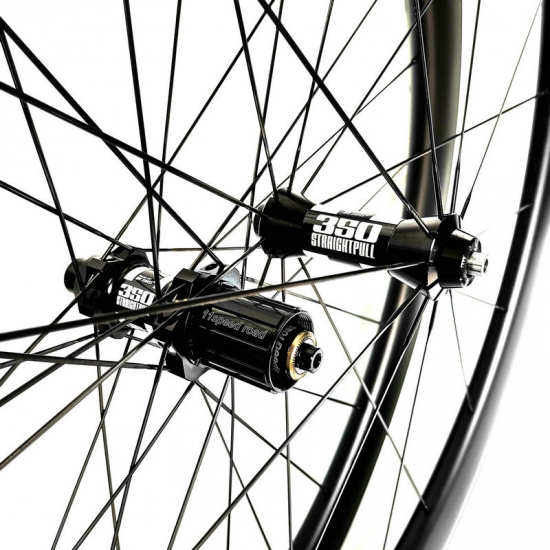

DT Swiss 350 hub, straight pull;
Size-axle: Front - 100x9mm, Rear - 130x10mm;
Free hub system: Ratchet System 18T (optional 36T / 54T);
Cassette body: Shimano Road 11S / Sram XDR;
Hole: front 20, rear 24;
Color: black.
Spoke:
Sapim CX-Ray spokes, black.
Nipple:
Sapim alloy nipples, black or red.
Lacing:

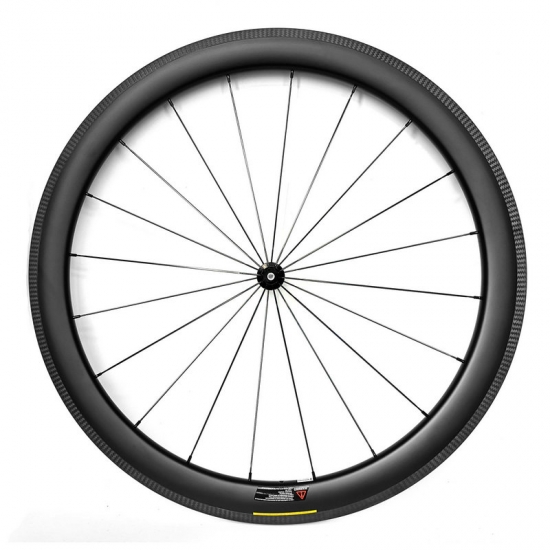

Front wheel - radial;

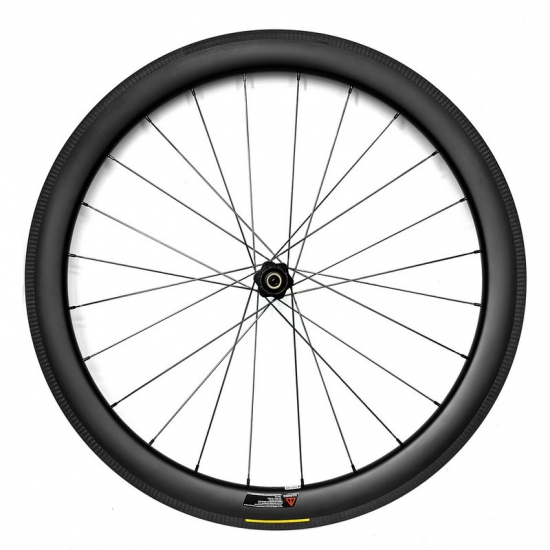

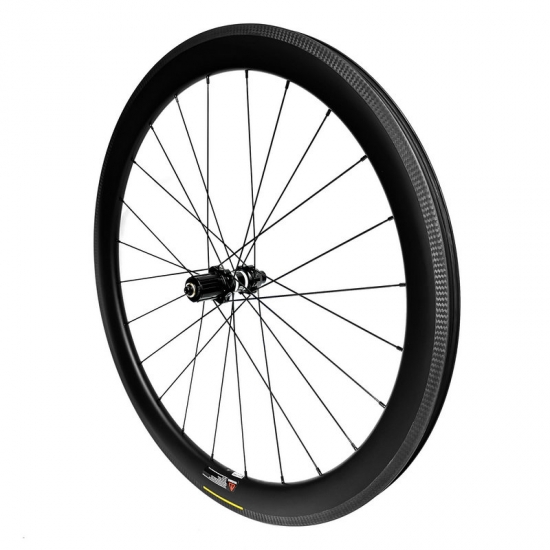

Rear wheel - 2 cross.
Extra: Spare spokes/nipples, skewers and brake pads included.
Weight:
Hub: 370g/set;
Spokes + nipples: 200g;
Weight without rims: 570g.
Rim model vs Complete wheel weight:
Model
Rim type
Rim weight / pc
Complete wheel weight (±5%) / set
Max weight limit
RX30SH
700c clincher 30x25mm
430g
1430g
115kgs
RX38SH
700c clincher 38x25mm
470g
1510g
120kgs
RX38DH
700c clincher 38x25mm- asymmetric
470g
1510g
120kgs
RX45SH
700c clincher 45x25mm
480g
1530g
125kgs
RX50SH
700c clincher 50x25mm
500g
1570g
125kgs
RX50DH
700c clincher 50x25mm - asymmetric
500g
1570g
125kgs
RX60SH
700c clincher 60x25mm
560g
1690g
130kgs
RX88SH
700c clincher 88x25mm
720g
2010g
135kgs
RX38L
700c clincher 38x28mm
480g
1530g
120kgs
RX50L
700c clincher 50x28mm
510g
1590g
125kgs
RT30S
700c tubular 30x25mm
310g
1190g
115kgs
RT38S
700c tubular 38x25mm
360g
1290g
120kgs
RT38D
700c tubular 38x25mm- asymmetric
360g
1290g
120kgs
RT50S
700c tubular 50x25mm
410g
1390g
125kgs
RT50D
700c tubular 50x25mm- asymmetric
410g
1390g
125kgs
RT60S
700c tubular 60x25mm
470g
1510g
130kgs
RT88S
700c tubular 88x25mm
530g
1630g
135kgs
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples, carbon-specific brake pads;
* All clincher rims are tubeless ready.
Choose your favorite rim model, leave a message below to get a best quote for your next carbon road bicycle wheelset!
