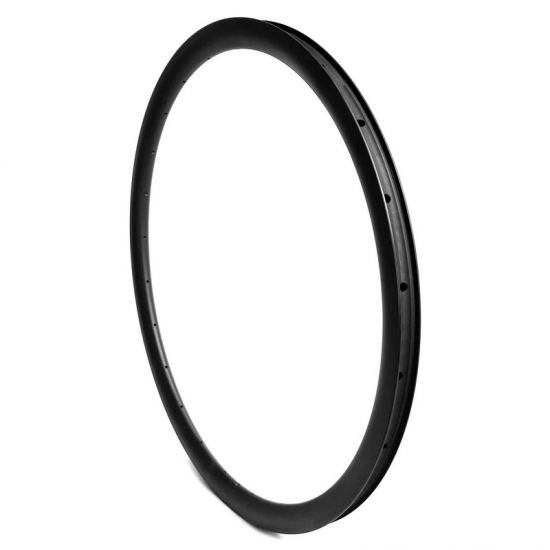

700c disc 23mm wide 32mm deep clincher carbon rim for road racing

Item D23-32MG, weight 330g, ERD 581mm. Crafted from ultra-light carbon fiber, the MG series rims are the result of continuous optimization in carbon fiber stacking technology. The use of high-quality T1000 and T800 carbon fiber materials ensures exceptional strength-to-weight ratio, making it an ideal choice for professional cyclists seeking maximum performance and durability.
  • Item No.:

    D23-32MG
  • Size:

    700C
  • Material:

    full carbon Toray T800 & T1000
  • Type:

    clincher (tubeless ready)
  • Brake:

    disc brake
  • Weight:

    330g±15
  • ERD:

    581mm
  • Inner width:

    23mm
  • Outer width:

    28.6mm
  • Depth:

    32mm
  • Max spoke tension:

    140kgf
  • Max weight limit:

    90kgs / 198lbs
  • description

Product Item: 700c disc 23mm wide 32mm deep clincher carbon rim for road racing



Crafted from ultra-light carbon fiber, the MG series rims are the result of continuous optimization in carbon fiber stacking technology. The use of high-quality T1000 and T800 carbon fiber materials ensures exceptional strength-to-weight ratio, making it an ideal choice for professional cyclists seeking maximum performance and durability.


Rim Specs


 Rim Model
 D23-32MG
 Material
 Toray T800 & T1000 premium carbon fiber
 Size
 700C (ETRTO 622mm)
 Intended Use
 Road racing
 Bead Type
 Clincher
 Tubeless Ready
 Yes

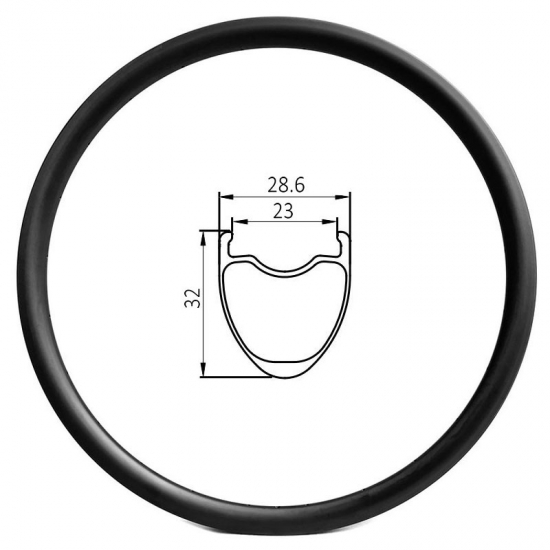

 Inner/Outer Width
 23mm/28.6mm
 Depth
 32mm
 ERD
 581mm (including nipple head dimension)
 Rim Weight
 330g±15
 Offset
 0mm (symmetric)
 Max Cyclist Weight (on flat ground)
 90kgs / 198lbs
 Rim Weave
 UD
 Rim Finish
 Matte, Glossy, Paintless
 Spoke Hole Angel
  ±7°
 Spoke Hole Diameter
 2.5mm, 4.5mm or customized
 Access Hole Diameter
 8.5mm
 Valve Hole Diameter
 6.5mm
 Max Spoke Tension
 140kgf (recommended 110~130kgf)
 Max Tire Pressure
 125psi / 8.62bar (recommended max)
 Recommended Tire Width
 25C-50C
 Decal / Paint
 None or Custom graphics
 Warranty
 5 years



Rim Features


  • Born for light road bicycle racing. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
  • Super lightweight, rim constructed with premium Toray T800 & T1000 carbon fiber, ensures exceptional strength-to-weight ratio, making it an ideal choice for professional cyclists seeking maximum performance and durability.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Warranty


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
