Item No.:
ChrisKing-R45-RBHub:
Chris King R45 stainless steel or ceramic hubSpoke:
Sapim CX-Ray, blackNipple:
Sapim alloy, black or redRim:
Carbonal rim brake carbon rimsLacing:
F - radial, R - drive side 2 cross, non-drive side radial.Hole:
Front 20, Rear 24Brake:
Rim brakeLevel:
Pro RacingStandard:

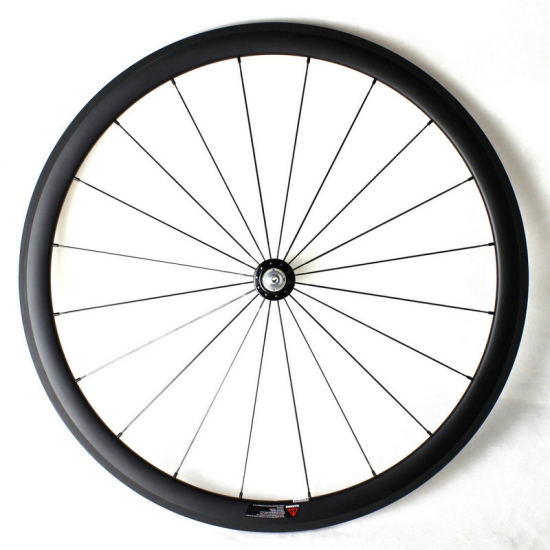

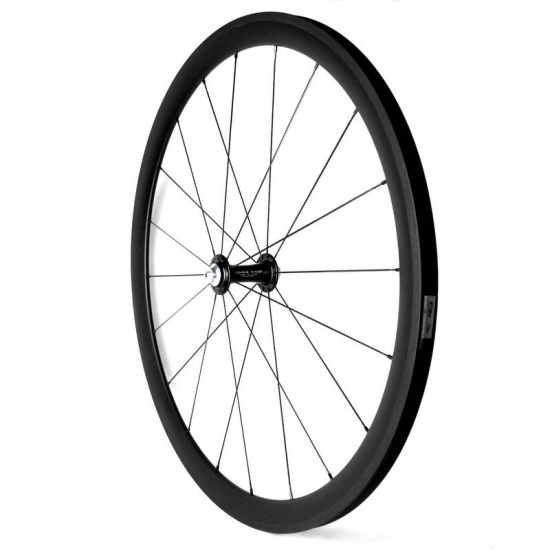

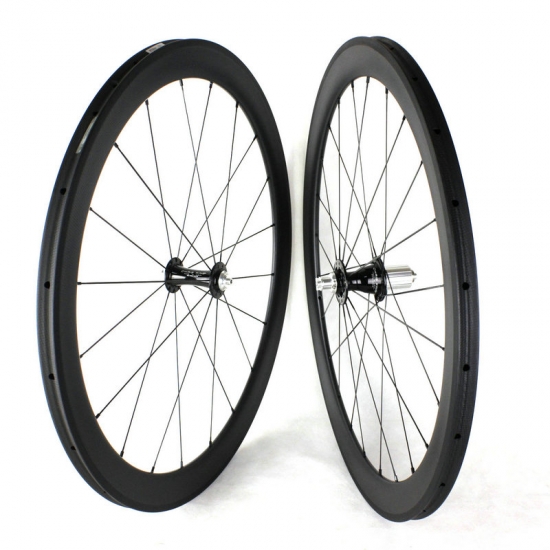

EN standardProduct Item: Chris King R45 hub + Sapim CX-Ray spoke custom road carbon wheels
Rim:
Carbonal rim brake 700c road bike carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.
5 years warranty.

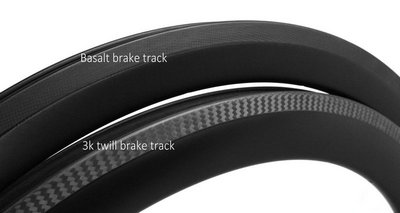

*Rim brake surface available: 3k twill brake track (recommended
) and basalt brake track.

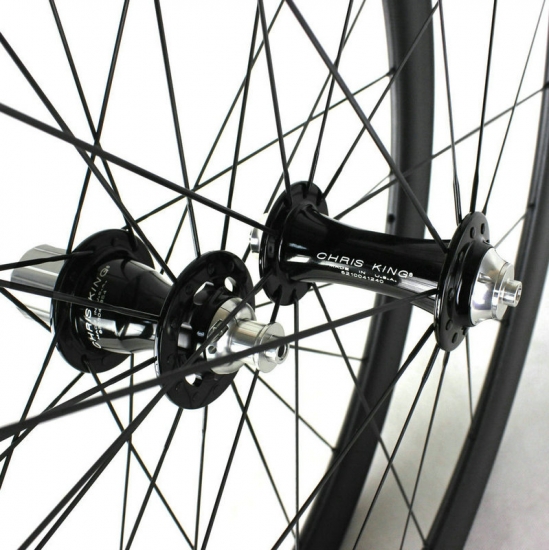

Chris King R45 stainless steel or ceramic hub;
Size-axle: Front - 100x9mm QR, Rear - 130x10mm QR;
Driveshell: Shimano Road 11S;
Brake system: non disc, rim brake;
Hole: Front 20, Rear 24;
Color: black or red.
Spoke:

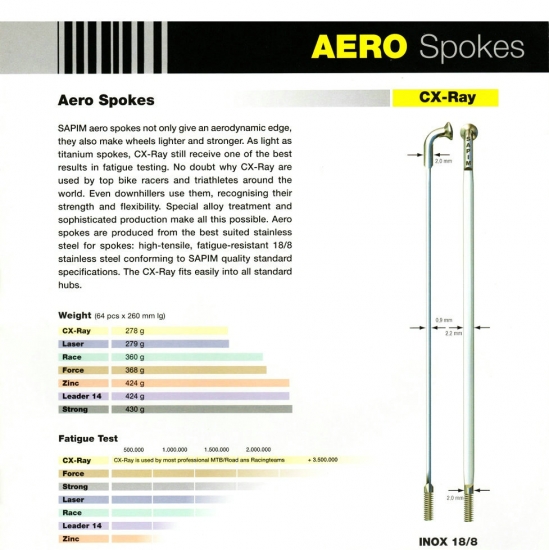

Sapim CX-Ray aero bladed spoke, J bend, black;
Nipple:
Sapim alloy, black or red.
Lacing:
Front wheel - radial;
Rear wheel - drive side 2 cross, non-drive side radial.
Weight:
Hub: 323g/set;
Spokes + nipples: 200g;
Weight without rims: 523g.
Rim model vs Complete wheel weight:
|
Model |
Rim type |
Rim weight / pc |
Complete wheel weight (±5%) / set |
Max weight limit |
|
RX30SH |
700c clincher 30x25mm |
430g |
1383g |
115kgs |
|
RX38SH |
700c clincher 38x25mm |
470g |
1463g |
120kgs |
|
RX38DH |
700c clincher 38x25mm- asymmetric |
470g |
1463g |
120kgs |
|
RX45SH |
700c clincher 45x25mm |
480g |
1483g |
125kgs |
|
RX50SH |
700c clincher 50x25mm |
500g |
1523g |
125kgs |
|
RX50DH |
700c clincher 50x25mm - asymmetric |
500g |
1523g |
125kgs |
|
RX60SH |
700c clincher 60x25mm |
560g |
1643g |
130kgs |
|
RX88SH |
700c clincher 88x25mm |
720g |
1963g |
135kgs |
|
RX38L |
700c clincher 38x28mm |
480g |
1483g |
120kgs |
|
RX50L |
700c clincher 50x28mm |
510g |
1543g |
125kgs |
|
RT30S |
700c tubular 30x25mm |
310g |
1143g |
115kgs |
|
RT38S |
700c tubular 38x25mm |
360g |
1243g |
120kgs |
|
RT38D |
700c tubular 38x25mm- asymmetric |
360g |
1243g |
120kgs |
|
RT50S |
700c tubular 50x25mm |
410g |
1343g |
125kgs |
|
RT50D |
700c tubular 50x25mm- asymmetric |
410g |
1343g |
125kgs |
|
RT60S |
700c tubular 60x25mm |
470g |
1463g |
130kgs |
|
RT88S |
700c tubular 88x25mm |
530g |
1583g |
135kgs |
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples, carbon-specific brake pads.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite carbon rim model, leave a message below to get a best quote for your next carbon road bike wheelset!
