Item No.:
A291F482SB-SL-RBHub:
Novatec A291SB-SL front / F482SB-SL rearSpoke:
Pillar Aero PSR X-TRA 1420Nipple:
Pillar alloyRim:
Carbonal rim brake carbon rimsLacing:
F - radial, R - 2 crossHole:
Front 20, Rear 24Brake:
Rim brakeLevel:
Eco RacingStandard:

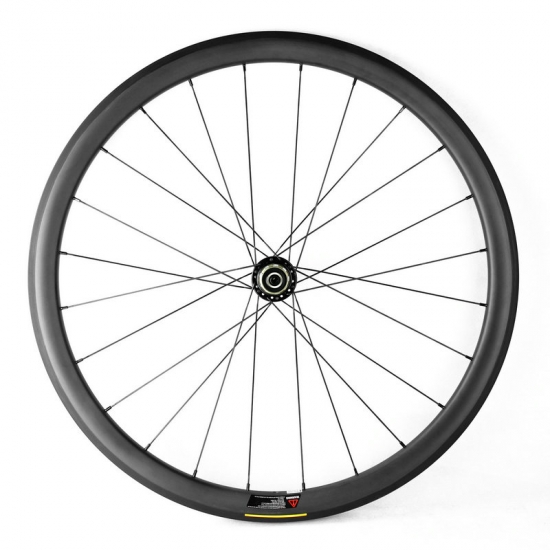

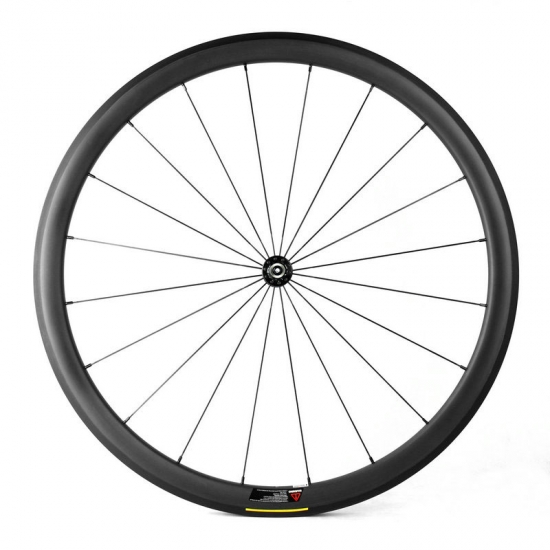

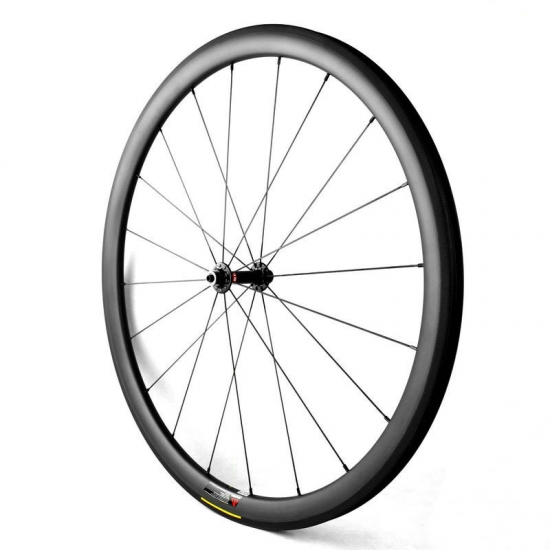

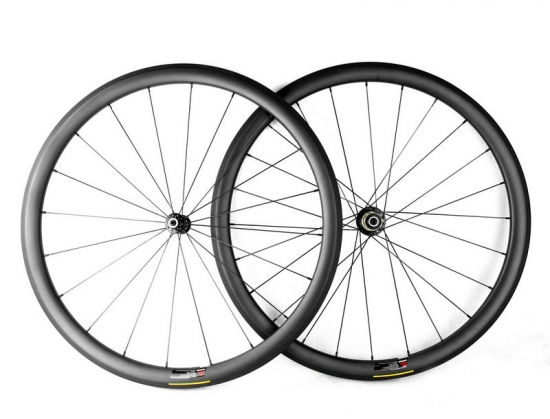

EN standardProduct Item: Novatec 291/482SL hub + Pillar 1420 spoke custom road bike carbon wheels
Rim:
Carbonal rim brake carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.
5 years warranty.
*Rim brake surface available: 3k twill brake track (recommended
) and basalt brake track.

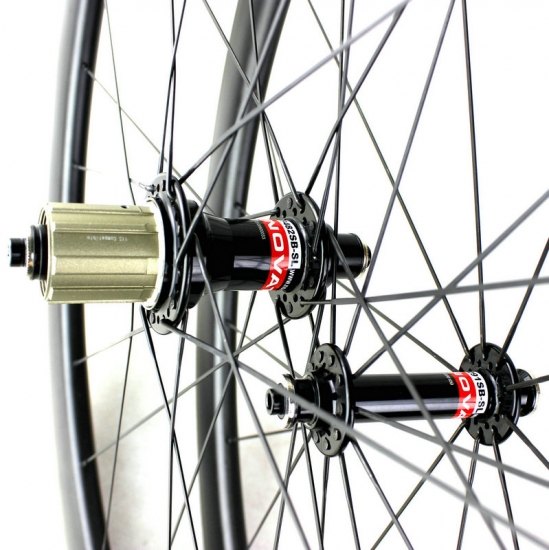

Hub:
Novatec A291SB-SL front & F482SB-SL rear hub;
Size-axle: Front - 100x9mm, Rear - 130x10mm;
Cassette body: Shimano Road 11S;
Brake system: non disc, rim brake;
Hole: Front - 20, Rear - 24;
Color: black.
Spoke:
Pillar aero 1420 spokes, J bend, black.
Nipple:
Pillar alloy nipples, black or red.
Lacing:
Front wheel - radial;
Rear wheel - 2 cross.
Weight:
Hub: 286g/set;
Spokes + nipples: 200g;
Weight without rims: 486g.
Rim model vs Complete wheel weight:
Model
Rim type
Rim weight / pc
Complete wheel weight (±5%) / set
Max weight limit
RX30SH
700c clincher 30x25mm
430g
1346g
115kgs
RX38SH
700c clincher 38x25mm
470g
1426g
120kgs
RX38DH
700c clincher 38x25mm- asymmetric
470g
1426g
120kgs
RX45SH
700c clincher 45x25mm
480g
1446g
125kgs
RX50SH
700c clincher 50x25mm
500g
1486g
125kgs
RX50DH
700c clincher 50x25mm - asymmetric
500g
1486g
125kgs
RX60SH
700c clincher 60x25mm
560g
1606g
130kgs
RX88SH
700c clincher 88x25mm
720g
1926g
135kgs
RX38L
700c clincher 38x28mm
480g
1446g
120kgs
RX50L
700c clincher 50x28mm
510g
1506g
125kgs
RT30S
700c tubular 30x25mm
310g
1106g
115kgs
RT38S
700c tubular 38x25mm
360g
1206g
120kgs
RT38D
700c tubular 38x25mm- asymmetric
360g
1206g
120kgs
RT50S
700c tubular 50x25mm
410g
1306g
125kgs
RT50D
700c tubular 50x25mm- asymmetric
410g
1306g
125kgs
RT60S
700c tubular 60x25mm
470g
1426g
130kgs
RT88S
700c tubular 88x25mm
530g
1546g
135kgs
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples, carbon-specific brake pads;
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite carbon road rim model, leave a message below to get a best quote for your next carbon road bike wheelset!
