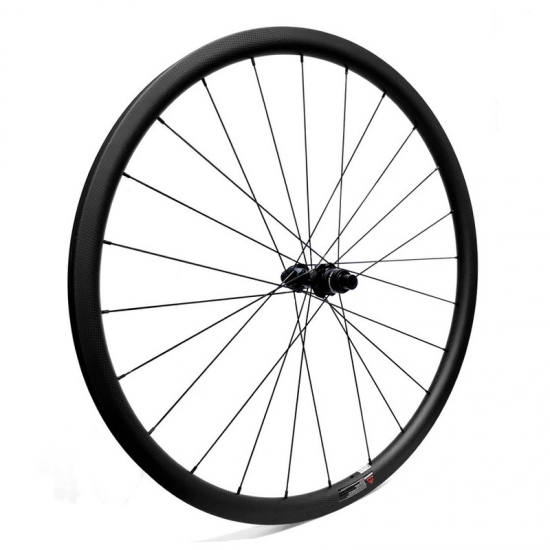

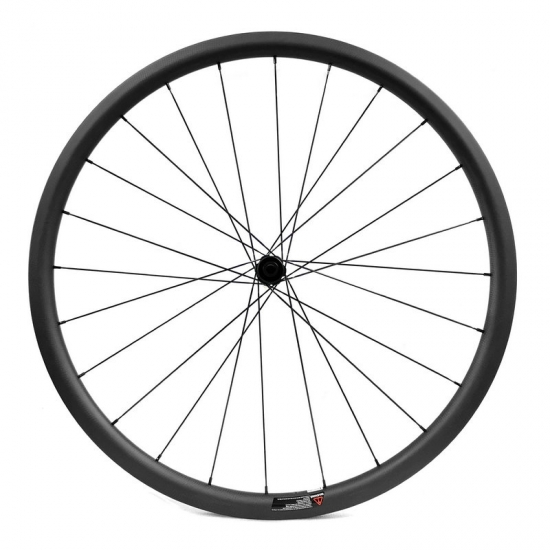

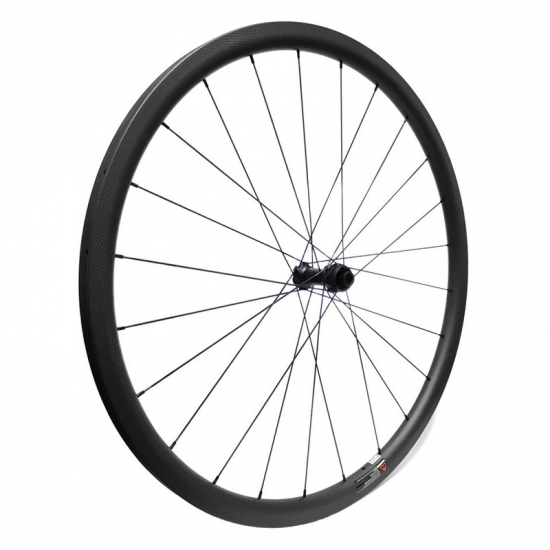

DT Swiss 180 SP hub + Sapim CX-Ray spoke custom road disc carbon wheels

[Disc Brake] Custom build disc bike carbon wheel with DT Swiss 180 straight pull hub + Aero CX-Ray Sapim spokes & nipples. Top Racing level, perfect transmission of your power and the ultimate in lightweight, stiffness and durability.

Item No.:
DT180-SP-DB
Hub:
DT Swiss 180 hub, Straight pull
Spoke:
Sapim CX-Ray, black
Nipple:
Sapim alloy, black or red
Rim:
Carbonal disc brake carbon rims
Lacing:
F - 2 cross, R - 2 cross
Hole:
24 / 24
Brake:
Disc brake
Level:
Top Racing
Standard:
EN standard

Contact now

description

Product Item: DT Swiss 180 SP hub + Sapim CX-Ray spoke custom road disc carbon wheels

Rim:

Carbonal disc brake carbon rims tubular & clincher tubeless. With the best blend of lightweight, aerodynamic, high stiffness and great strength to deliver the highest possible efficiency.

Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see rims in different carbon weaves.

5 years warranty.

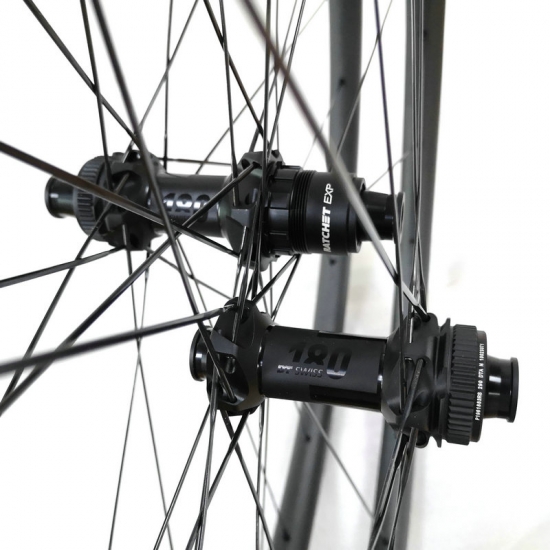

Hub:

DT Swiss 180 hub, straight pull;

Axle system: F - 12x100mm, R - 12x142mm;

Free hub system: Ratchet EXP 36;

Cassette body: Shimano Road 11S / Sram XDR;

Brake system: Disc center lock;

Hole: Front 24, Rear 24;

Color: black.

Spoke:

Sapim CX-Ray spokes, black;

Nipple:

Sapim alloy nipples, black or red.

Lacing:

Front wheel - 2 cross;

Rear wheel - 2 cross.

Weight:

Hub: 280g/set;

Spokes + nipples: 218g;

Weight without rims: 498g.

Rim model vs Complete wheel weight:

Model	Rim type	Rim weight / pc	Complete wheel weight (±5%) / set	Max weight limit
DX30S	700c clincher 30x25mm	370g	1238g	115kgs
DX38S	700c clincher 38x25mm	400g	1298g	120kgs
DX38D	700c clincher 38x25mm- asymmetric	400g	1298g	120kgs
DX45S	700c clincher 45x25mm	430g	1358g	125kgs
DX50S	700c clincher 50x25mm	450g	1398g	125kgs
DX50D	700c clincher 50x25mm - asymmetric	450g	1398g	125kgs
DX60S	700c clincher 60x25mm	500g	1498g	130kgs
DX88S	700c clincher 88x25mm	680g	1858g	135kgs
DX38L	700c clincher 38x28mm	410g	1318g	120kgs
DX42L	700c clincher 42x28mm	430g	1358g	125kgs
DX50L	700c clincher 50x28mm	460g	1418g	125kgs
DX60L	700c clincher 60x28mm	530g	1558g	130kgs
DT30S	700c tubular 30x25mm	290g	1078g	115kgs
DT38S	700c tubular 38x25mm	330g	1158g	120kgs
DT38D	700c tubular 38x25mm- asymmetric	330g	1158g	120kgs
DT50S	700c tubular 50x25mm	360g	1218g	125kgs
DT50D	700c tubular 50x25mm- asymmetric	360g	1218g	125kgs
DT60S	700c tubular 60x25mm	430g	1358g	130kgs
DT88S	700c tubular 88x25mm	530g	1558g	135kgs

* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples.

* All clincher rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.

Choose your favorite carbon rim model, leave a message below with the rim item number (such as DT30S) to get a best quote for your next carbon road wheelset!
