Item No.:
Bitex-BX306/BX312-DBHub:
Bitex BX306/ BX312 hubSpoke:
Sapim CX-Ray, blackNipple:
Sapim alloy, black or redRim:
Carbonal disc brake carbon rimsLacing:
F - 2 cross, R - 2 crossHole:
24 / 24Brake:
Disc 6 bolts / disc center lockLevel:
Mid RacingStandard:

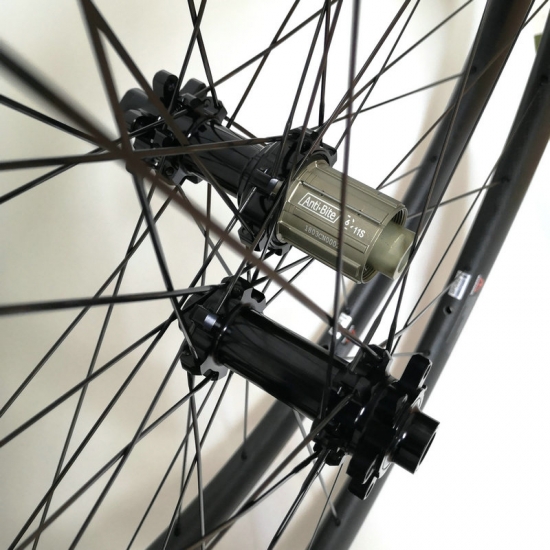

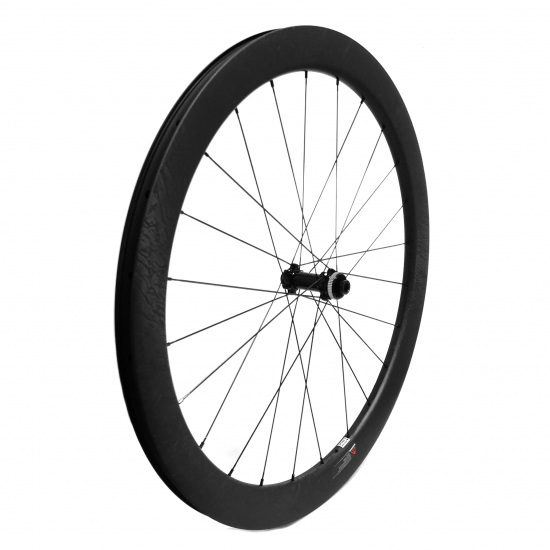

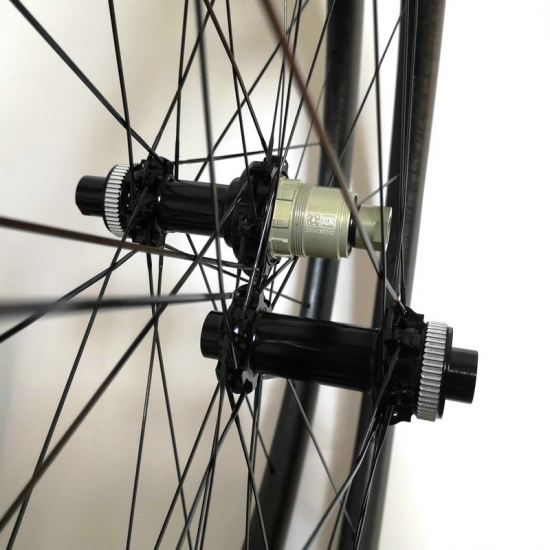

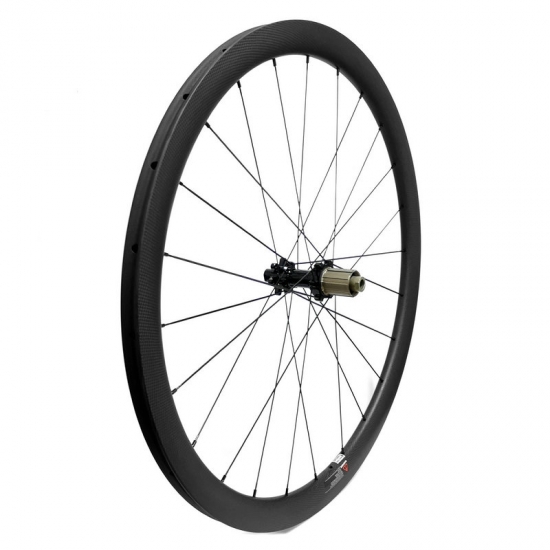

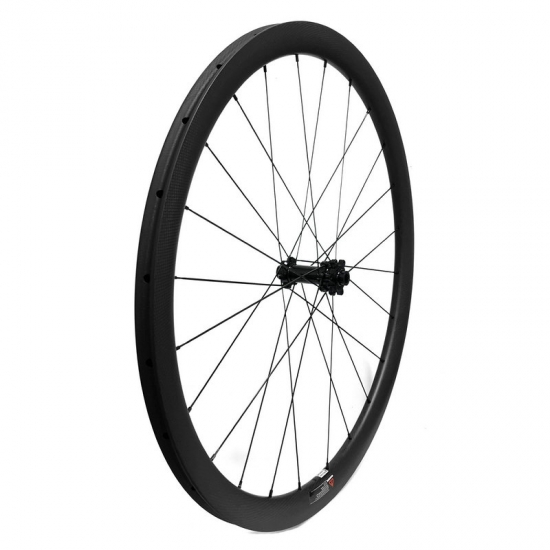

EN standardProduct Item: Bitex BX306/BX312 hub + Sapim CX-Ray spoke custom road disc carbon wheels
Rim:
Carbonal disc brake carbon rims tubular & clincher tubeless. With the best blend of lightweight, aerodynamic, high stiffness and great strength to deliver the highest possible efficiency.
Bitex BX306F/R (6 bolts) or BX312F/R (center lock), straight pull;
Size-axle: Front - 100x9mm (QR) or 100x12mm; Rear - 135x10mm (QR) or 142x12mm;
Driveshell: Shimano Road 11SP / Sram XDR;
Brake system: Disc 6 bolts / Disc center lock;
Hole: Front 24, Rear 24;
Color: black.
Spoke:
Sapim CX-Ray spoke, straight pull, black;
Nipple:
Sapim alloy, black or red.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Weight:
Hub: 335g/set;
Spokes + nipples: 218g;
Weight without rims: 553g.
Rim model vs Complete wheel weight:
|
Model |
Rim type |
Rim weight / pc |
Complete wheel weight (±5%) / set |
Max weight limit |
|
DT30S |
700c tubular 30x25mm |
290g |
1133g |
115kgs |
|
DT38S |
700c tubular 38x25mm |
330g |
1213g |
120kgs |
|
DT38D |
700c tubular 38x25mm- asymmetric |
330g |
1213g |
120kgs |
|
DT50S |
700c tubular 50x25mm |
360g |
1273g |
125kgs |
|
DT50D |
700c tubular 50x25mm - asymmetric |
360g |
1273g |
125kgs |
|
DT60S |
700c tubular 60x25mm |
430g |
1413g |
130kgs |
|
DT88S |
700c tubular 88x25mm |
530g |
1613g |
135kgs |
|
D18-30 |
700c clincher 30x25mm |
370g |
1293g |
115kgs |
|
D18-38 |
700c clincher 38x25mm |
400g |
1353g |
120kgs |
|
D18-38X |
700c clincher 38x25mm - asymmetric |
400g |
1353g |
120kgs |
|
D18-45 |
700c clincher 45x25mm |
430g |
1413g |
125kgs |
|
D18-50 |
700c clincher 50x25mm |
450g |
1453g |
125kgs |
|
D18-50X |
700c clincher 50x25mm- asymmetric |
450g |
1453g |
125kgs |
|
D18-60 |
700c clincher 60x25mm |
500g |
1553g |
130kgs |
|
D18-80 |
700c clincher 80x25mm |
660g |
1873g |
135kgs |
|
D21-22 |
700c clincher 22x28mm |
380g |
1313g |
120kgs |
|
D21-33 |
700c clincher 33x28mm |
400g |
1333g |
120kgs |
|
D21-38 |
700c clincher 38x28mm |
410g |
1373g |
120kgs |
|
D21-44 |
700c clincher 44x28mm |
430g |
1413g |
125kgs |
|
D21-50 |
700c clincher 50x28mm |
460g |
1473g |
125kgs |
|
D21-60 |
700c clincher 60x28mm |
530g |
1613g |
130kgs |
|
D21-70 |
700c clincher 70x28mm |
560g |
1673g |
130kgs |
|
D21-80 |
700c clincher 80x28mm |
650g |
1853g |
135kgs |
|
D21-28X |
700c clincher 28x29mm - asymmetric |
380g |
1313g |
120kgs |
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* All carbon wheels are 100% customizable at Carbonal bike. If you can't find the specs you need, please contact us (sales@carbonalbike.com) directly to see what we can do, we will do our best to help you.
Choose your favorite rim model, leave a message below to get a best quote for your next carbon road bicycle disc wheels!
