Item No.:
RT38SSize:
700CMaterial:
full carbon Toray T700 & T800Type:
tubularBrake:
rim brakeWeight:
320g±15 / 360g±15ERD:
569mmWidth:
25mmDepth:
38mmMax spoke tension:
140kgfMax weight limit:
120kg / 265lbs

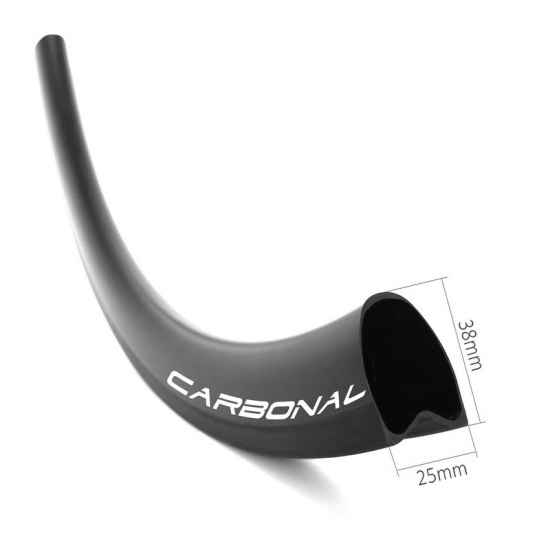

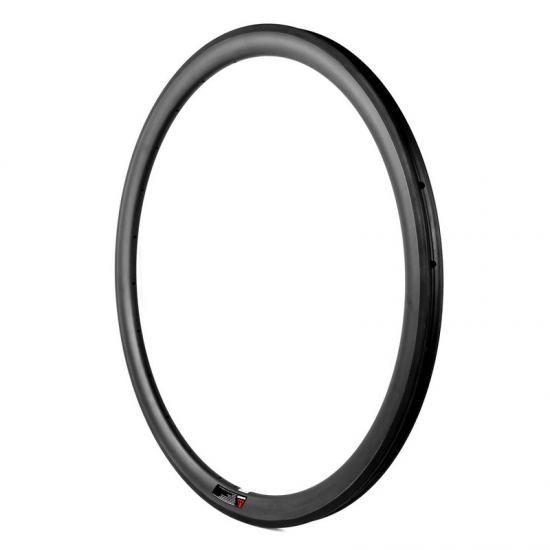

Product Item: U shape 700c road wider 38mm deep bicycle wheel tubular rim
700c road wider 38mm bicycle wheel tubular rims are super light and with wider width, the strength is much improved. It's the best choice for light weight road bicycle wheels.
Specification:
|
Item: |
RT38S |
Use: |
road bike, cyclocross |
|
Rim type: |
700C tubular - rim brake |
Material: |
Toray T700 & T800 premium carbon fiber |
|
Width: |
25mm |
Weight: |
320g±15 / 360g±15 |
|
Depth: |
38mm |
ERD: |
569mm |
|
Weave: |
UD, 3k, marble |
Finish: |
Matte, glossy |
|
Spoke hole count: |
16 - 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Max / Min tire pressure: |
N/A / 80psi |
|
Decal: |
Customized |
Weight limit: |
120kgs / 265lbs |
|
TG resin temperature: |
210°C |
Standard: |
EN standard |
Features:
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
