Enduro 29er mountain bike hookless 35mm wide carbon rim tubeless ready

Product Item: Enduro 29er mountain bike hookless 35mm wide carbon rim tubeless ready

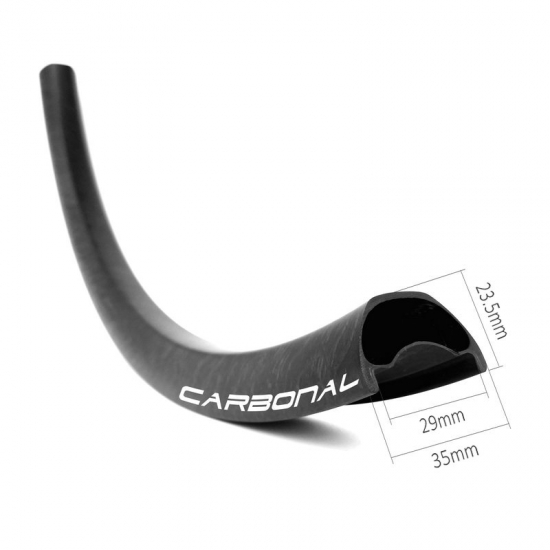

This enduro 29er carbon rim is enhanced version base on trail 35mm wide rim, more stiff, durable and long lasting, which is perfect for all mountain and enduro mountain bicycle.

Specification:

Item:	EN929 (MX935EN)	Use:	Enduro, All mountain
Rim type:	29" hookless	Material:	Toray T700 & T800 carbon fiber
Tubeless ready:	Yes	Weight:	460g±20

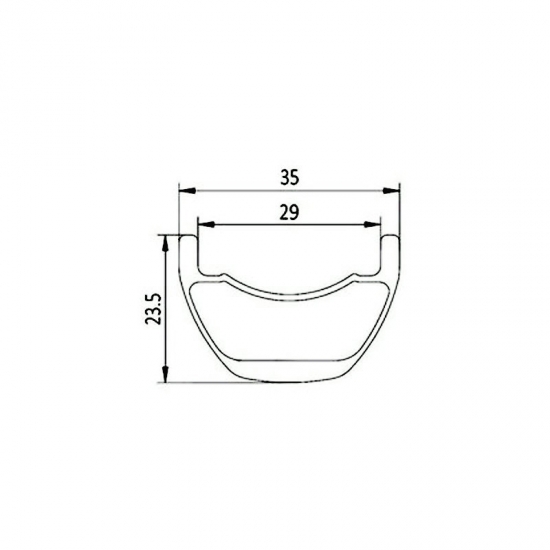

External/Internal width:	35mm / 29mm	ERD:	598mm
Depth:	23.5mm	Finish:	Matte, glossy
Weight limit:	125kgs	Weave:	UD, 3k, 3k twill, 6k, marble
Spoke hole count:	16 - 36	Assemble hole diameter:	8.5mm
Spoke hole diameter:	4.5mm / 2.5mm or customized	Valve hole diameter:	6.5mm
Max spoke tension:	140kgf (recommended 110~130kgf)	Max tire pressure:	60psi / 4.1bar
Tire size:	2.2" ~ 2.7" (recommended)	Min tire pressure:	25psi / 1.75bar
Decal:	Customized	Standard:	EN standard

Features:

• Impact Resistant Construction. Carbon rims feature a layer of composite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.


• Wider 35/29mm rim profile offers improved aerodynamics, better handling in crosswinds condition and faster riding.


• Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.

• Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.

• Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.

• Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.


• Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

Unique Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the stength of rim is the stongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

100% Quality Inspection:

5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.

This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.

1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
