Item No.:
RT45SSize:
700CMaterial:
full carbon Toray T700Type:
tubularBrake:
rim brakeWeight:
330g±15 / 370g±15ERD:
555mmWidth:
25mmDepth:
45mmMax spoke tension:
140kgfMax weight limit:
125kg / 276lbs

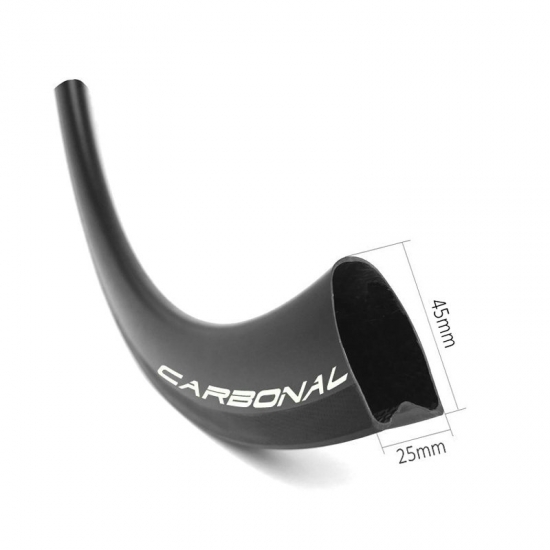

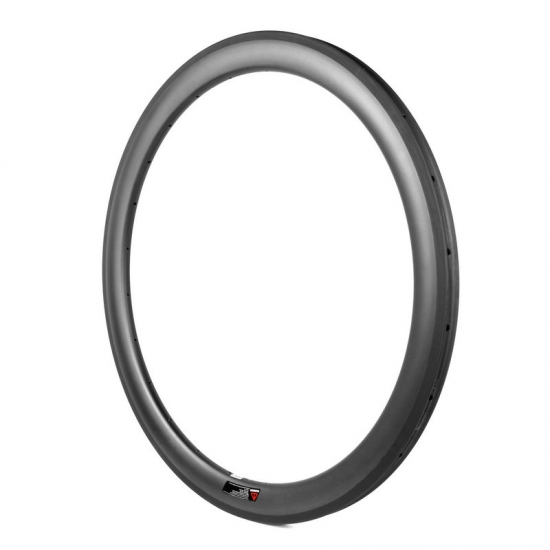

Product Item: 700C road bike 25mm wide 45mm deep tubular carbon rim
These 25mm wide tubular rim 45mm deep is asymmetric profile, aerodynamic performance and it build up into stiffer, stronger and more reliable bike wheels by equalizing the spoke tensions between the drive and non-drive side spokes.
Specification:
|
Item: |
RT45S |
Use: |
road bike, cyclocross |
|
Rim type: |
700C tubular - *rim brake / disc brake |
Material: |
Toray T700 carbon fiber |
|
Width: |
25mm |
Weight: |
330g / 370g±15 |
|
Depth: |
45mm |
ERD: |
555mm |
|
Weave: |
UD, 3k, marble |
Finish: |
Matte, glossy |
|
Spoke hole count: |
16 - 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Max / Min tire pressure: |
N/A / 80psi |
|
Decal: |
None or Customized |
Weight limit: |
120kgs |
|
TG resin temperature: |
210°C |
Standard: |
EN standard |
* This rim can be made without brake track for disc brake use.

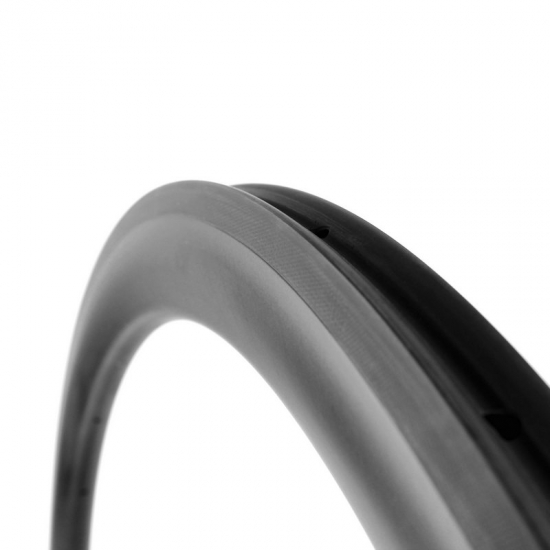

* For rim brake, the brake track available in 3k twill (recommended
) or basalt surface.
Features:
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
More about Carbonal carbon rim Quality Control.
