Item No.:
EN735Size:
27.5 inchMaterial:
full carbon Toray T700 & T800Type:
hookless (tubeless ready)Weight:
460g±20ERD:

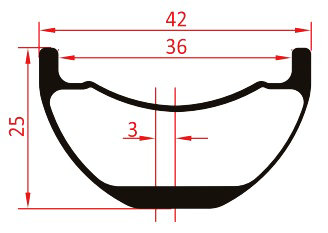

557mmInner width:
36mmOuter width:
42mmDepth:
25mmMax spoke tension:
140kgfMax weight limit:

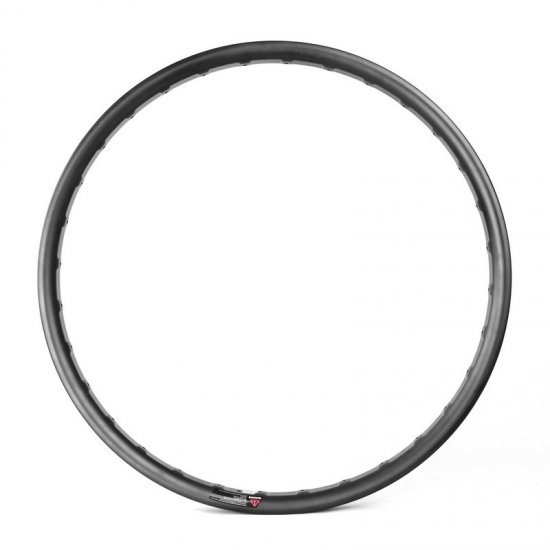

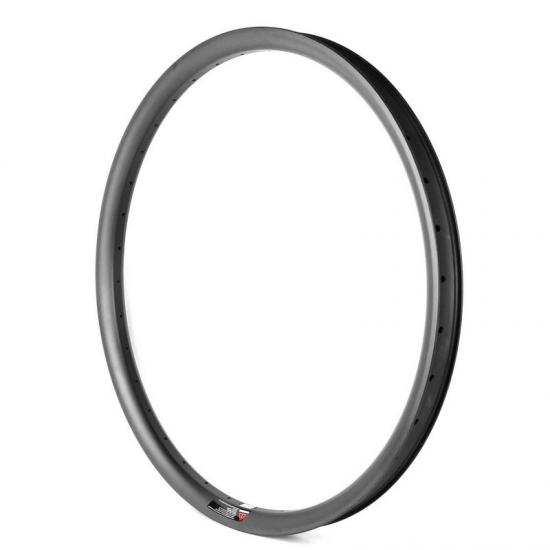

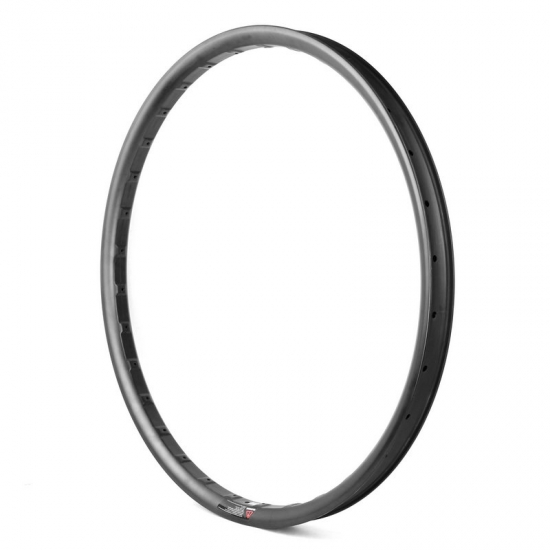

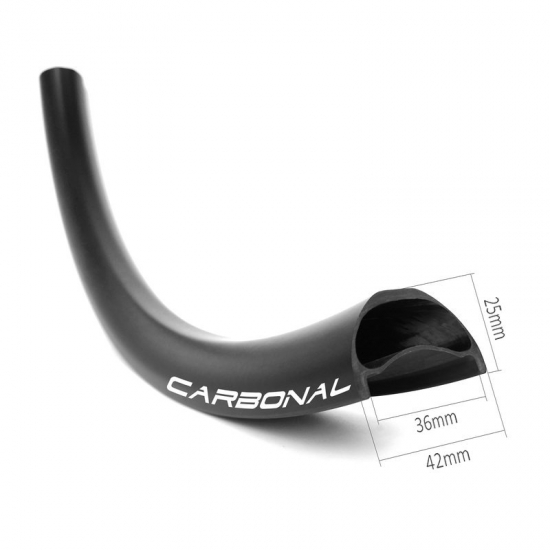

125kg / 276lbsProduct Item: Enduro 650b carbon mtb rim 42mm wide 25mm deep hookless tubeless ready
This enduro 650b carbon mtb rim is enhanced version base on trail version 42mm wide rim, it's specially designed for you to ride with wide mountain bike or e-bike wheels for better corner control and grip level.
Specification:
|
Item: |
EN735 (MX742EN) |
Use: |
Enduro, All mountain, E-bike |
|
Rim type: |
27.5" / 650b hookless |
Material: |
Toray T700 & T800 premium carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
460g±20 |
|
External/Internal width: |
42mm / 36mm |
ERD: |
557mm (including nipple head dimension) |
|
Depth: |
25mm |
Weave: |
UD, 3k, 6k, 3k twill, marble |
|
Weight limit: |
125kgs / 276lbs |
Finish: |
Matte, glossy |
|
Spoke hole count: |
16 - 36 * |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Max tire pressure: |
60psi / 4.1bar |
|
Tire size: |
2.5" ~ 2.8" (recommended) |
Min tire pressure: |
25psi / 1.75bar |
|
Decal: |
Customized |
Standard: |
EN standard |

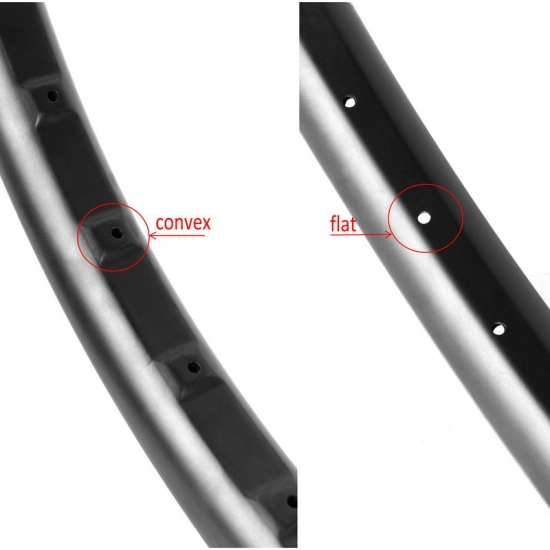

*This rim with 32 hole can be made with convex hole and flat hole, with other spoke holes can be made with flat hole only.
Features:
Unique Manufacturing Process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the stength of rim is the stongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about carbon rim quality control here.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.

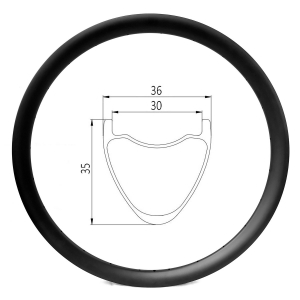

Enduro 27.5er mountain bike hookless 35mm wide carbon rim tubeless ready
