Item No.:
MX942EBProduct Origin:
ChinaPayment:
Bank Transfer, PayPal, Credit Card.Customizable:
All wheels are 100% customizable at Carbonal Bike Factory. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described.

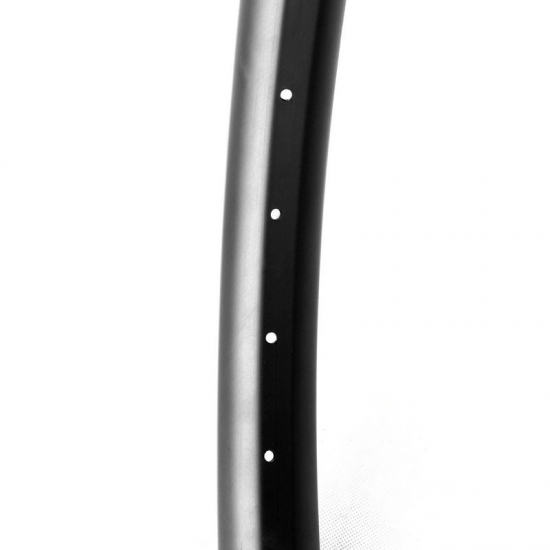

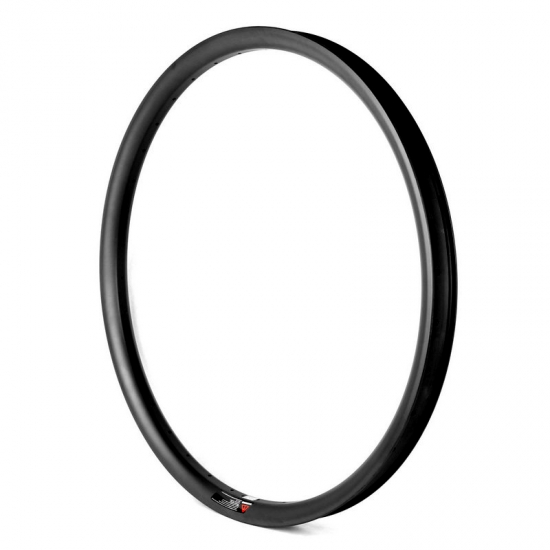

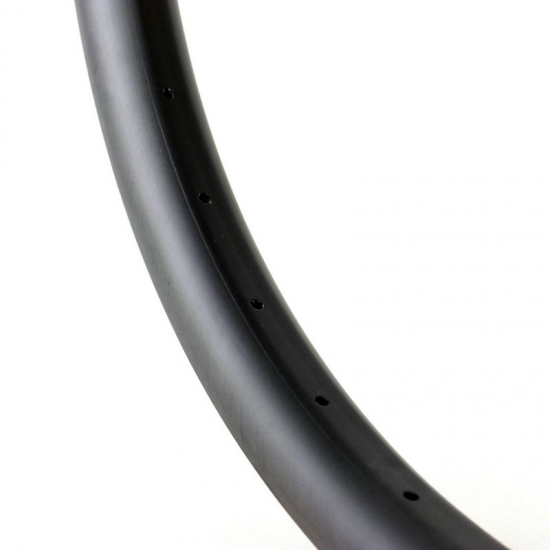

Product Item: 29 inch E-bike rim carbon 42mm wide 25mm depth hookless tubeless ready
The extra power of E-bikes asks for extra strong parts. This E-bike carbon rim feature a wide, reinforced profile, this ensures they are long lasting and perfectly compatible with higher volume tires.
Specification:
|
Item: |
MX942EB |
Use: |
E-bike, Enduro |
|
Rim type: |
29" hookless |
Material: |
Toray T700 & T800 carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
510g±20 |
|
External/Internal width: |
42mm / 36mm |
ERD: |
595mm |
|
Depth: |
25mm |
Weave: |
UD, 3k, 6k, 3k twill, marble |
|
Weight limit: |
125kgs |
Finish: |
Matte, glossy |
|
Spoke hole count: |
28 / 32 / 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Max tire pressure: |
60psi / 4.1bar |
|
Tire size: |
2.3" ~ 3.0" (recommended) |
Min tire pressure: |
25psi / 1.75bar |
|
Decal: |
Customized |
Standard: |
EN standard |
Features:
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Unique Manufacturing Process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
