Item No.:
D24-29Size:
700C/29erMaterial:
full carbon Toray T700 & T800Type:
clincher (tubeless ready)Brake:
disc brakeWeight:
370g±15ERD:

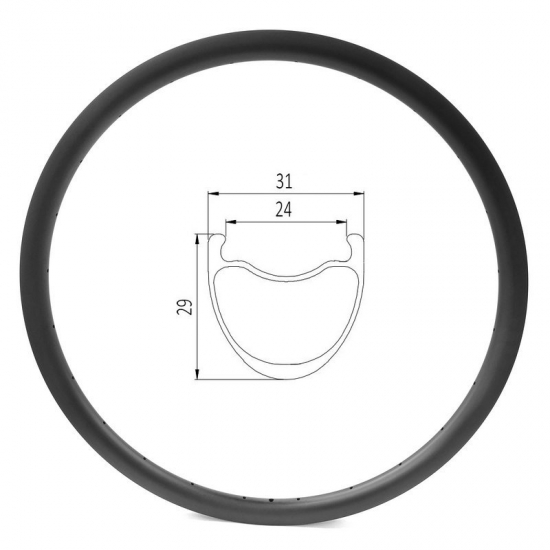

587mmInner width:
24mmOuter width:
31mmDepth:
29mmMax spoke tension:
140kgfMax weight limit:
120kgs / 265lbs
Product Item: 700c gravel bike disc 24mm internal width 29mm deep clincher carbon rim
With a massive 24mm inner diameter, the D24-29 gravel bike rim provides a stable profile for even the widest gravel tires. It's one of the best rim possible for long distance gravel racing or riding.
Rim Specs
Rim model
D24-29
Material
Toray T700 & T800 premium carbon fiber
Size
29" / 700C (ETRTO 622mm)
Intended use
Gravel/CX
Bead type
Clincher
Tubeless ready
Yes
Inner/Outer width
24mm/31mm
Depth
29mm
ERD
587mm (including nipple head dimension)
Weight
370g±15
Offset
0mm (symmetric)
Max cyclist weight (on flat ground)
120kgs / 265lbs
Spoke hole angle
±7°
Spoke tension
110~130kgf (recommended)
Tire pressure (28C）
80psi / 5.52bar (recommended max)
Tire size
27C ~ 50C (recommended)
Assemble hole diameter
8.5mm
Valve hole diameter
6.5mm
Decal
None or Customized
Warranty
5 years
Rim Features
Warranty
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
More about Carbonal carbon rim Quality Control.

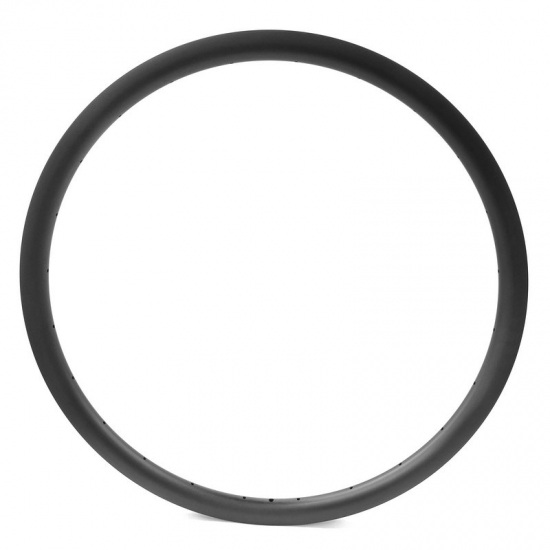

D24-29 carbon rim overview
