Road bike tubular rims and 29er mountain bike rim
Hot Products
disc bike rim asymmetrical

700c road disc bike rim asymmetrical 2.5mm offset clincher tubeless ready

Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.

Details
disc road bike rim

Aero disc road bike rim 28mm wide 50mm deep clincher tubeless

Item D21-50, weight 425g / 460g, ERD 545mm. Featuring a wide 28mm external rim width, this tubeless ready 50mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.

Details
hookless gravel rim

Asymmetric 29er hookless 29mm wide 28mm deep carbon rim for gravel bike

Item D24-28HX (GZX28), weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.

Details
disc bike rim

29er disc bike rims 24mm inner width 38mm depth hookless for cyclocross and gravel bikes

Item D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.

Details
rim for gravel bike

700c 29er disc 22mm wide 35mm deep clincher rim for road and gravel bike

Item D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.

Details
700c bike rim

700c disc bike asymmetrical 22mm internal width 40mm deep clincher rim

Item D22-40X, weight 390g, ERD 565mm. New 2.5mm offset asymmetric 29er/700C 40mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.

Details
XC bike carbon rims

29er asymmetrical rim profile 30mm internal width XC bike carbon rim

Item XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.

Details
gravel bike disc rim

700c gravel bike disc 24mm internal width 39mm deep clincher carbon rim

Item D24-39, weight 410g, ERD 567mm. Tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclocross bike tire choices. It's one of the best rim possible for long distance gravel racing or riding.

Details
Latest news
2024 National Day Holiday Notice

2024 National Day Holiday Notice

Dear Valued Customer, We trust this correspondence finds you in excellent spirits. It is with great pleasure that we share our upcoming holiday schedule and key updates at Carbonal. Holiday Schedule &...

Road bike tubular rims and 29er mountain bike rim

2012-03-20

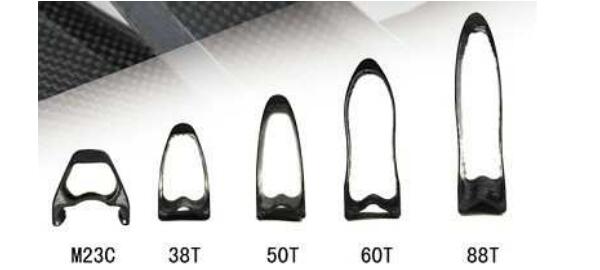

According to customer's suggestions, we have opened 4 molds of carbon fiber road bike tubular rim, these rim depths: 38mm, 50mm, 60mm and 88mm. We will add two molds of 24mm and 44mm deep later (in testing stage now).


To achieve best aerodynamic proformance, we designed these rims in different widths and shapes.

38 and 50mm deep rim width is 20.5mm, 60mm and 88mm deep rim width is 21.6mm.

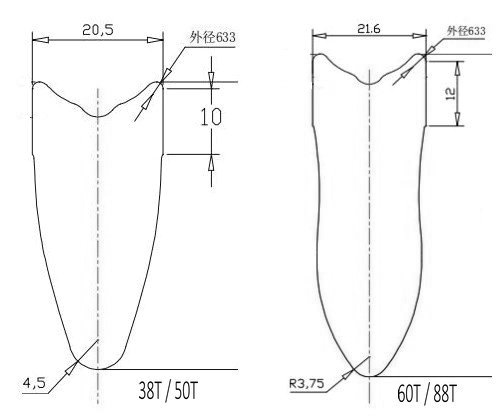

38/50/60/88mm tubular rim profile


Rim weight: 38T - 320g; 50T - 370g; 60T - 430g; 88T - 480g; with +/-15g tolerance.


And we opened a 29er carbon mtb clincher rim mold (M23C), OD 633mm. Rim deep 23.5mm, and 24.13mm width, weight: 380g, with +/-10g tolerance.

M23C rim profile

We will add 26er and 27.5er (650b) molds soon.

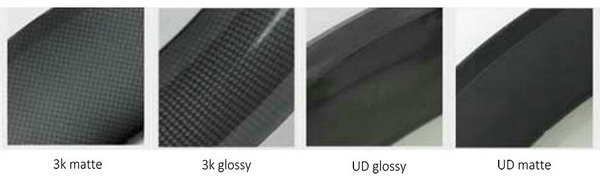

These rims are available in UD (uni-direction) and 3k carbon fiber weave, matte and glossy finishes, so you can choose the best weave and finish to fit your bike.
