Item No.:
XC925Size:
29 inchMaterial:
full carbon Toray T700 & T800Type:
Hookless (tubeless ready)Weight:
315g±15ERD:
595mmInner width:
25mmOuter width:
30mmDepth:
25mmMax spoke tension:
140kgfMax weight limit:
100kg / 220lbsProduct Item: Light mountain bike cross country 29er hookless rim tubeless compatible
This 29-inch rim is lightweight yet stiff for cross country, serving as the optimal selection for lightweight 29-inch carbon wheels. It is hookless and tubeless-ready, perfectly fitting for your 29er XC mountain bike.
Rim Specs
|
Rim Model |
XC925 |
|
Material |
Toray T700 & T800 premium carbon fiber |
|
Size |
29" |
|
Intended Use |
XC / marathon racing |
|
Bead Type |
Hookless |
|
Tubeless Ready |
Yes |
|

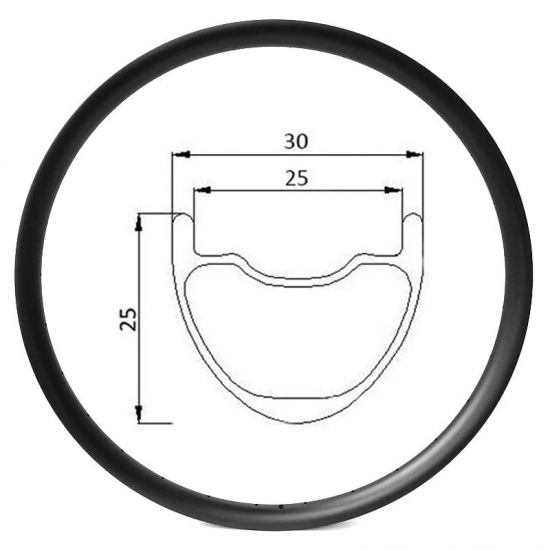

Inner/Outer Width |
25mm/30mm |
|
Depth |
25mm |
|
ERD |
595mm (including nipple head dimension) |
|
Rim Weight |
315g±15 |
|
Offset |
0mm (symmetric) |
|
Max Cyclist Weight (on flat ground) |
100kgs / 220lbs |
|

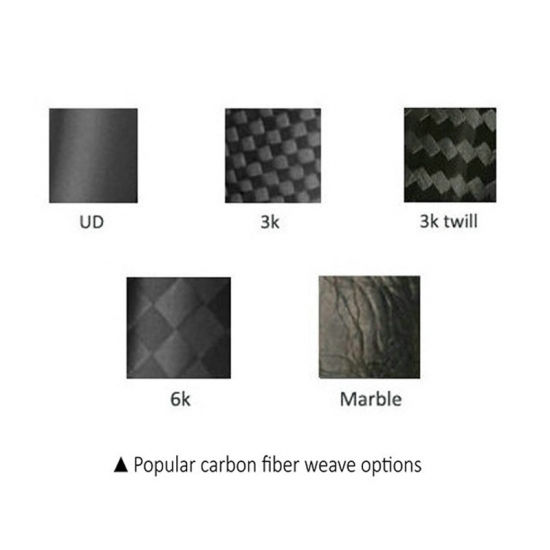

Rim Weave |
UD / 3k / 3k twill / 6k / Marble |
|
Rim Finish |
Matte, Glossy, Paintless |
|
Spoke Hole Angel |
±7° |
|
Spoke Hole Diameter |
2.5mm, 4.5mm or customized |
|
Access Hole Diameter |
8.5mm |
|

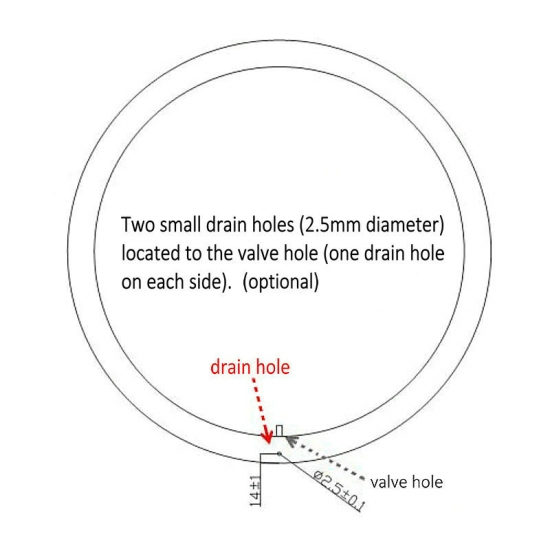

Valve Hole Diameter |
6.5mm |
|
Max Spoke Tension |
140kgf (recommended 110~130kgf) |
|
Max Tire Pressure |
60psi / 4.14bar (recommended max) |
|
Recommended Tire Width |
2.0" - 2.4" |
|
Decal / Paint |
None or Custom graphics |
|
Warranty |
5 years |
Rim Features
Warranty
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
Related Gallery & Comments:
>>> very-happy-for-new-mx930xc-cross-country-wheel-with-dt-swiss-350-boost-hub
Full carbon 650b bike XC rim 30mm wide hookless tubeless ready
Item XC725, weight 300g, ERD 557mm. This new carbon 650b bike rim is light and stiff, it's a supler lightweigt 27.5 rim for XC, the best choice for super light 650b carbon wheel. It's hookless and tubeless ready, perfect for your 650b cross country bike.
29er mtb XC 27mm internal width 25mm deep asymmetric carbon rim
Item XC927X, weight 330g / 365g, ERD 595mm. This 29er mtb rim 27mm inner and 33mm outer width, asymmetric 3mm offset rim profile balances drive and non-drive side spoke tension to create a more durable and well-balanced light mtb wheel, it's perfect upgrade for your xc mountain bike.
Light weight tubeless compatible mtb XC 29er hookless carbon rim
Item XC927X-30, weight 390g, ERD 585mm. This asymmetric 3mm offset 29er mtb rim balances drive and non-drive side spoke tension to create a more durable and well-balanced light mtb wheel, it's perfect upgrade for your xc mountain bike.
29er mtb 24mm internal width 20mm deep asymmetric carbon rim
Item XC924X, weight 295g, ERD 595mm. New lightest 29er mtb rim for Cross-Country riders, with 295g a piece, the complete wheelset can come in at a surprisingly low weight of around 1,100g. Perfect for race days with the super climbing-friendly lightweight, and for backwood adventures with enhanced strength.
29er mtb XC 30mm internal 28mm deep asymmetric carbon rim
Item XC930X-28, weight 360g, ERD 589mm. Wide 30mm internal width and 3.5mm offset asymmetrical rim profile, super light at 360g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
650b asymmetrical rim profile 30mm internal width XC bike carbon rim
Item XC730X, weight 350g, ERD 557mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 350g, suitable for XC rider who is looking for wide but light 650b XC bike carbon wheelset.
29er asymmetrical rim profile 30mm internal width XC bike carbon rim
Item XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
29er asymmetric mtb XC rim convex spoke hole hookless tubeless ready
Item XC927A, weight 310g, ERD 595mm. This asymmetric 3mm offset 29er mtb rim with 1.5mm convex spoke hole brings stronger spoke holes, better rigidity and faster power transfer.
