29er asymmetric mtb XC rim convex spoke hole hookless tubeless ready

Product Item: 29er asymmetric mtb XC rim convex spoke hole hookless tubeless ready

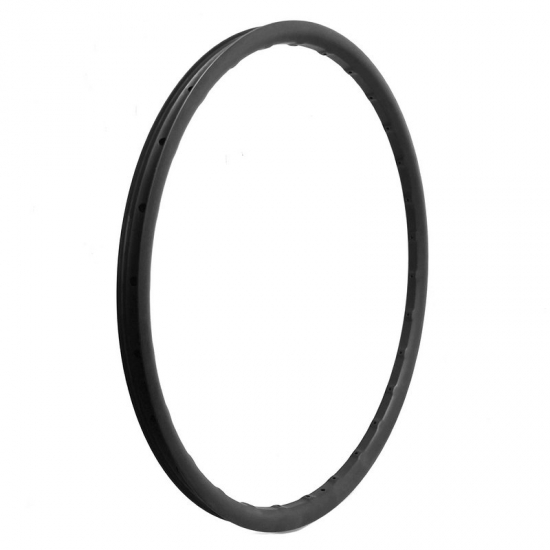

Item XC927A, weight 310g, ERD 595mm. This asymmetric 3mm offset 29er mtb rim with 1.5mm convex spoke hole brings stronger spoke holes, better rigidity and faster power transfer.

Rim Specs:

* ERD: we calculate effective rim diameter from the top point of the nipple, learn more here.

Features:

• The asymmetric structure of the rim allows a more even spoke tension which further increases the rigidity of a complete impeller.

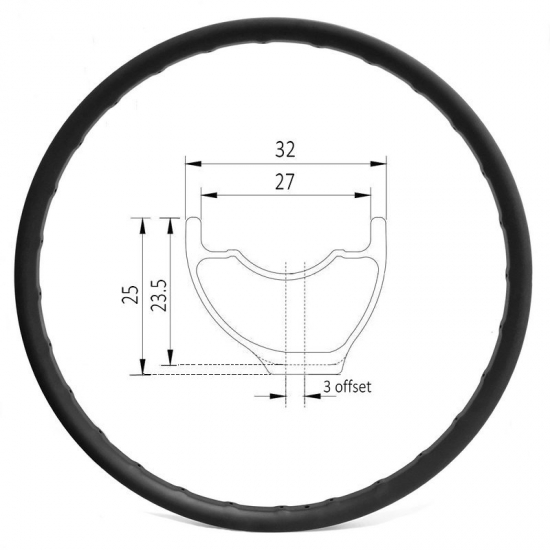

• Due to the wide width of 32 mm on the outside and an internal rim dimension of 26 mm, this 29" carbon rim offers enough space even for wide tires.

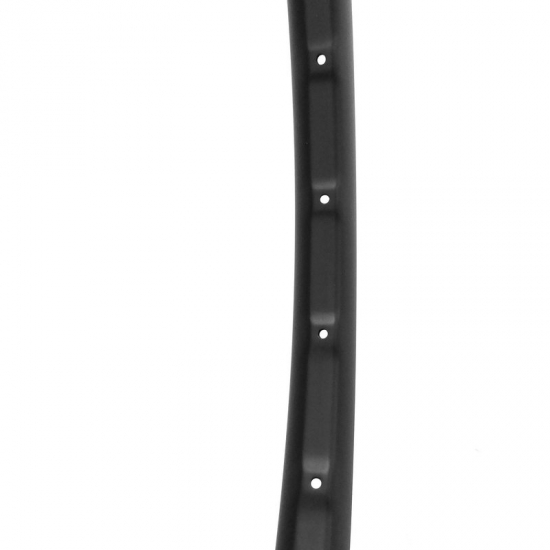

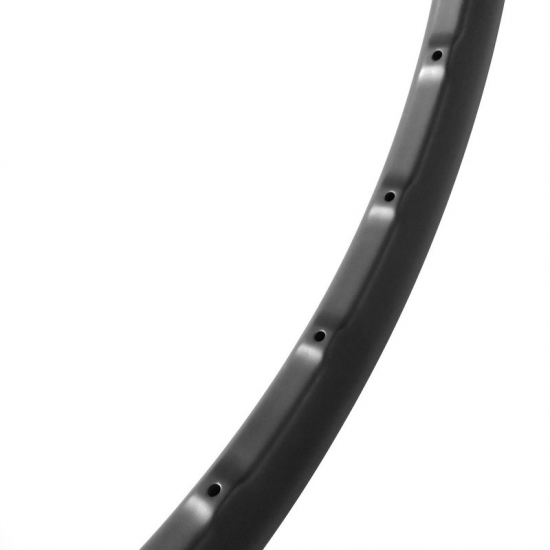

• Convex spoke hole design brings stronger spoke holes, better rigidity and faster power transfer.


• Impact Resistant Construction. Carbon rims feature a layer of composite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.

• Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.

• Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.

• Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.

• Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.

• Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.


• Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the stength of rim is the stongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Warranty Policy:

5 years warranty and 2 years crash replacement;

1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.

100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.

Read more about Carbonal carbon rim Quality Control.
