Item No.:
DT350SP-Gravel-DBHub:
DT Swiss 350, Straight pullSpoke:
Sapim CX-Ray spokeNipple:
Sapim alloyRim:
Carbonal Gravel rimsLacing:
F - 2 cross, R - 2 crossHole:
Front 28, Rear 28Brake:
Disc brakeLevel:
Mid RacingStandard:
EN standard

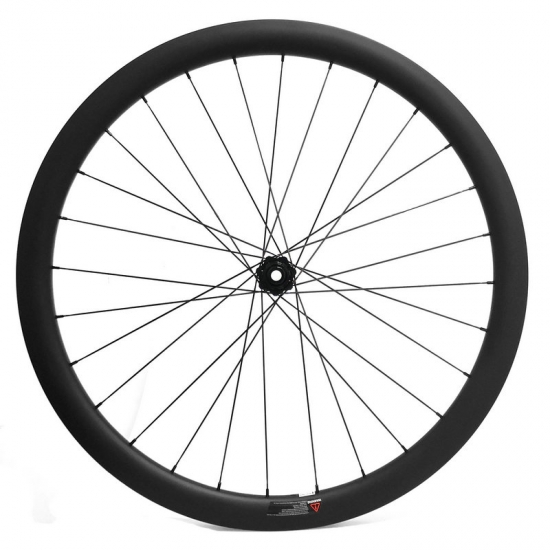

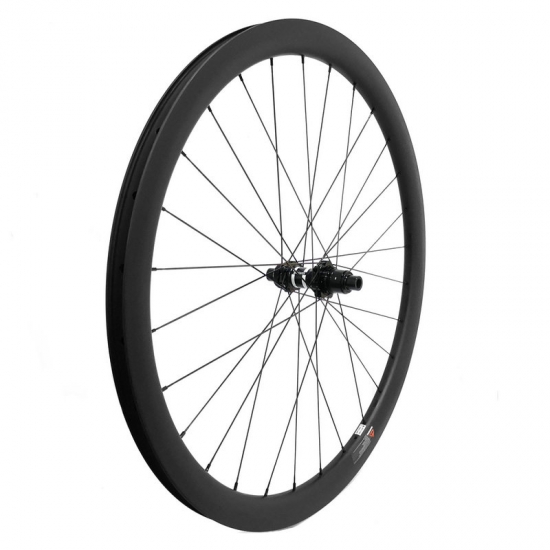

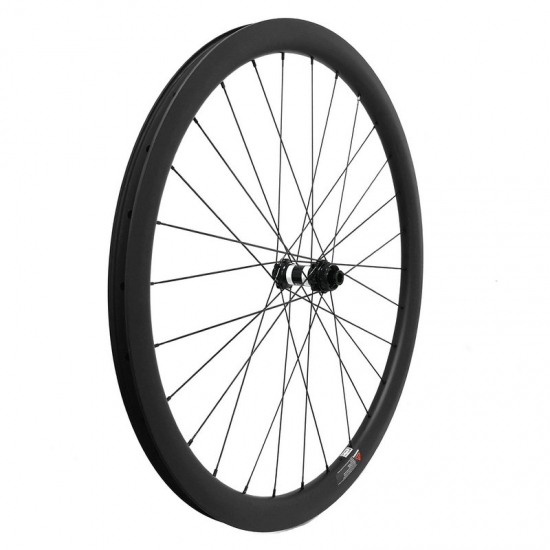

Product Item: DT Swiss 350 SP hub + Sapim CX-Ray spoke custom gravel bike carbon wheels
Rim:
High performance Carbonal CX & Gravel bike carbon rims, which can be ridden almost everywhere, on the road and off it.
Hub:

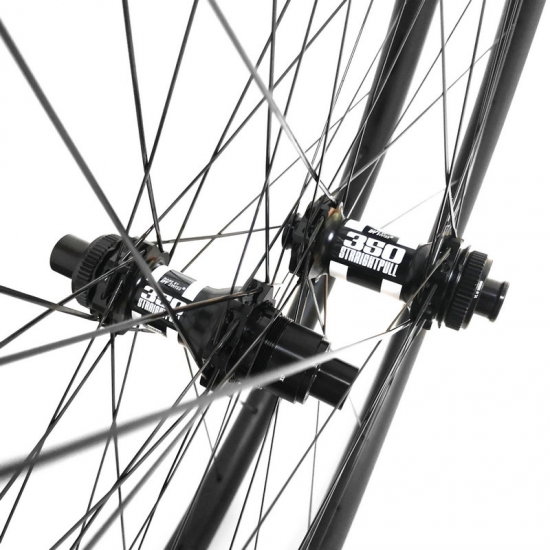

DT Swiss 350 SP hub, straight pull;
Axle system: Front - 12*100mm, Rear - 12*142mm;
Cassette body: Shimano Road 11S / Sram XDR;
Ratchet: 18T / 36T / 54T;
Brake system: Disc center lock;
Hole: 28/28;
Color: black.
Spoke:
Sapim CX-Ray spoke, straight pull, black;
Nipple:
Sapim alloy nipple, black or red.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Gravel Rim model vs Complete wheel weight:
|
Model |
Rim type |
Rim weight / pc |
Complete wheel weight (±5%) / set |
Max weight limit |
|
GZX28 |
29" / 700c clincher 28x29mm |
350g |
1,380g |
120kgs |
|
GZX35 |
27.5" / 650b clincher 35x32mm |
350g |
1,380g |
120kgs |
|
GZX38 |
29" / 700c clincher 27.5x38mm |
380g |
1,440g |
130kgs |
|
GZX50 |
29" / 700c clincher 27.5x50mm |
420g |
1,520g |
135kgs |
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
