Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.
DetailsItem D21-50, weight 425g / 460g, ERD 545mm. Featuring a wide 28mm external rim width, this tubeless ready 50mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.
DetailsItem D24-28HX (GZX28), weight 350g, ERD 589mm. This new hookless asymmetric 29er gravel bike carbon rim with wider 24mm inner width, more lightweight than hook version but without compromising stiffness and strength.
DetailsItem D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.
DetailsItem D22-35, weight 375g, ERD 575mm. New 22mm internal width 29er/700C 35mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem D22-40X, weight 390g, ERD 565mm. New 2.5mm offset asymmetric 29er/700C 40mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
DetailsItem XC930X-25, weight 365g, ERD 595mm. Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 365g, suitable for XC rider who is looking for wide but light 29er XC bike carbon wheelset.
DetailsItem D24-39, weight 410g, ERD 567mm. Tubeless ready platform has 24mm internal width, suitable for a wide range of gravel, cyclocross bike tire choices. It's one of the best rim possible for long distance gravel racing or riding.
Details
Dear Valued Customer, We trust this correspondence finds you in excellent spirits. It is with great pleasure that we share our upcoming holiday schedule and key updates at Carbonal. Holiday Schedule &...
Item No.:
DT240SP-Gravel-DBHub:
DT Swiss 240 (EXP 36), Straight pullSpoke:
Sapim CX-Ray spokeNipple:
Sapim alloyRim:
Carbonal Gravel rimsLacing:
F - 2 cross, R - 2 crossHole:
Front 24, Rear 24Brake:
Disc brakeLevel:
Pro RacingStandard:
EN standard

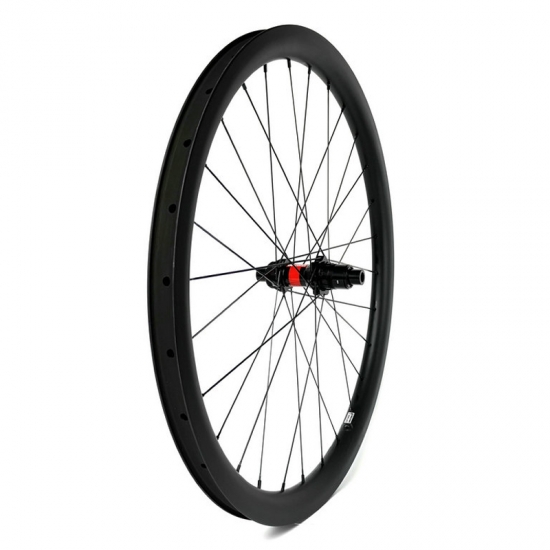

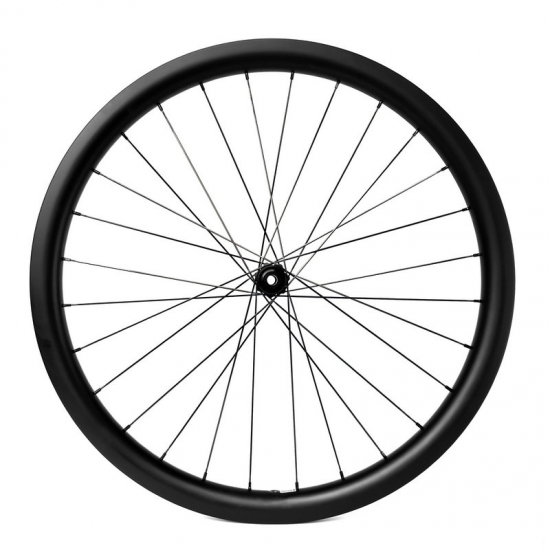

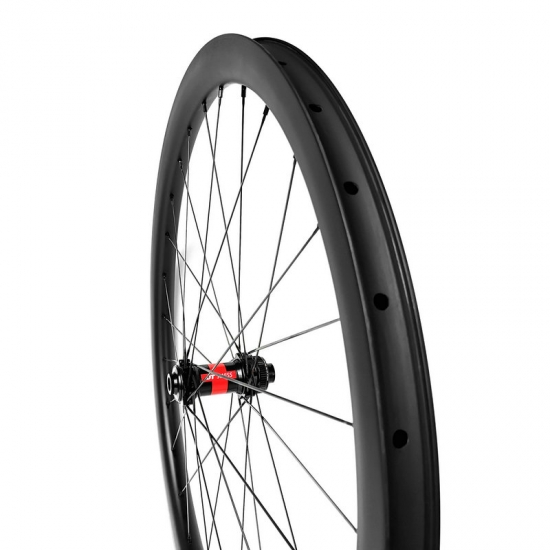

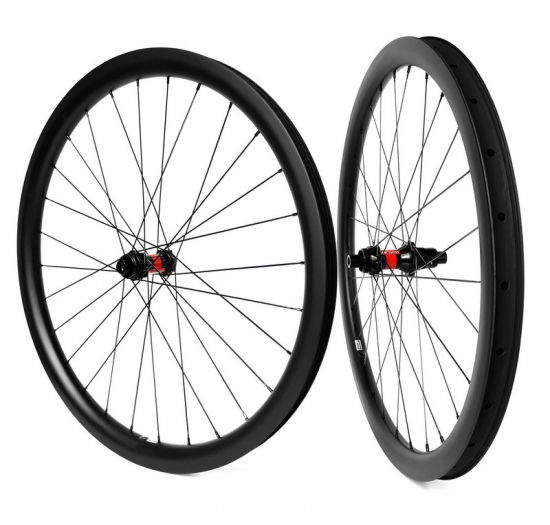

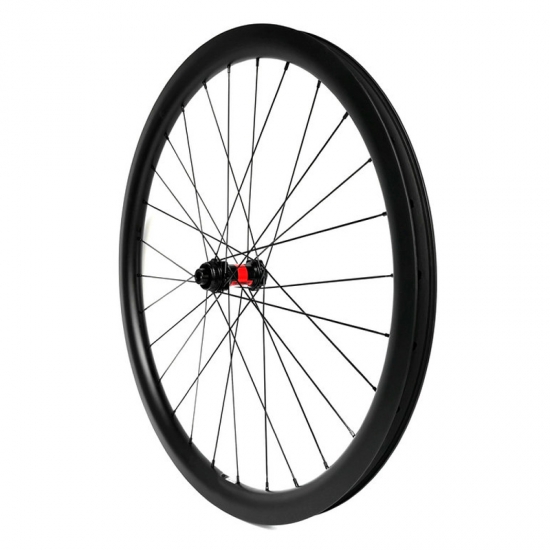

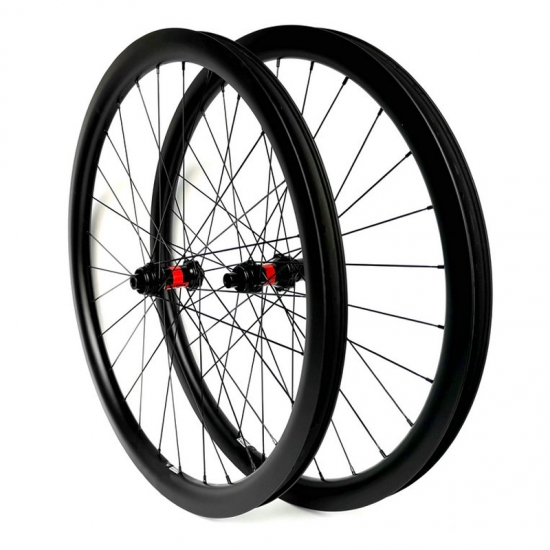

Product Item: DT Swiss 240 SP hub + Sapim CX-Ray spoke custom gravel bike carbon wheels
Rim:
High performance Carbonal CX & Gravel bike carbon rims, which can be ridden almost everywhere, on the road and off it.
Hub:
DT Swiss 240 SP hub (EXP 36), straight pull;
Axle system: Front - 12*100mm, Rear - 12*142mm;
Cassette body: Shimano Road 11S / Sram XDR;
Ratchet: EXP 36;
Brake system: Disc center lock;
Hole: 24/24;
Color: black.
Spoke:
Sapim CX-Ray spoke, straight pull, black;
Nipple:
Sapim alloy nipple, black or red.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Gravel Rim model vs Complete wheel weight:
|
Model |
Rim type |
Rim weight / pc |
Complete wheel weight (±5%) / set |
Max weight limit |
|
GZX28 |
29" / 700c clincher 28x29mm |
350g |
1,335g |
120kgs |
|
GZX35 |
27.5" / 650b clincher 35x32mm |
350g |
1,335g |
120kgs |
|
GZX38 |
29" / 700c clincher 27.5x38mm |
380g |
1,395g |
130kgs |
|
GZX50 |
29" / 700c clincher 27.5x50mm |
420g |
1,475g |
135kgs |
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Gravel bike tubular 50mm depth 25mm wide carbon rim
Item RT50S-CX, weight 410g, ERD 545mm. Wider and U shape 50mm deep rim profile, constructed with premium Toray T700 & T800 carbon fiber, makes this disc tubular rim stiff, strong and durable, a good choice for gravel bike or cyclocross disc brake wheels.
Gravel bike tubular 30mm deep 25mm wide carbon rim
Item RT30S-CX, weight 350g, ERD 586mm. Wide and low U shape profile, constructed with premium Toray T700 & T800 carbon fiber, makes this disc tubular rim stiff, strong and durable, a good choice for road, gravel or cyclocross disc brake wheels.
Gravel bike tubular 38mm depth 25mm wide carbon rim
Item RT38S-CX, weight 370g, ERD 569mm. Wider and U shape 38mm deep aero designed rim profile, constructed with premium Toray T700 & T800 carbon fiber, makes this disc tubular rim stiff, strong and durable, a good choice for gravel or cyclocross disc brake wheels.
Novatec D411 & D412 hub + Sapim CX-Ray spoke custom gravel bike wheelset
[Disc Brake] Custom build road disc carbon wheel with Novatec D411 front and D412 rear hub + Sapim CX-Ray spokes & alloy nipples. Eco Racing level, lightweight, stiff and durable, perfect for your gravel & cyclocross bike.
29er disc bike rims 24mm inner width 38mm depth hookless for cyclocross and gravel bikes
Item D24-38H (GZX38), weight 380g, ERD 569mm. The GZX38 was designed with one goal in mind: making the best rim possible for long distance gravel racing or riding. With a massive 24mm inner width, this rim provides a stable profile for even the widest gravel tires.
Asymmetric 27.5er hookless 30mm wide 35mm depth gravel carbon rim
Item D25-35HX (GZX35), weight 350g, ERD 537mm. Asymmetric 2.5mm offset carbon rim for lightweight 27.5 inch & 650b gravel bike, hookless and tubeless ready, more stiff, strong and durable, perfect for building gravel bike disc brake wheels.
29er disc bike rims 24mm inner width 50mm depth hookless for cyclocross and gravel bikes
Item D24-50H (GZX50), weight 420g, ERD 545mm. This 28mm external and 24mm internal width 50mm road disc rim provides the perfect platform for anything from a 30C to 50C gravel, cyclocross tire and makes tubeless set up a breeze.
DT Swiss 350 SP hub + Sapim CX-Ray spoke custom gravel bike carbon wheels
[Disc Brake] Custom build disc brake gravel bike carbon wheel with DT Swiss 350 SP hub + Sapim CX-Ray spokes & alloy nipples. Mid Racing level, maximum durability, perfect for the your daily training, riding and racing use.
