Item R18-50, weight 500g, ERD 545mm. U shape 50mm deep rim profile makes this road clincher rim pretty stiff, but still aerodynamic performance. Durable and aerodynamic enough for road racing, training, climbing, and also cyclocross riding.
Item No.:
R18-50Product Origin:
China.Payment:
Bank Transfer, PayPal, Credit Card.Customizable:
All wheels are 100% customizable at Carbonal Bike Factory. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described.
Product Item: High TG resin carbon rims 700c clincher 50mm deep tubeless compatible

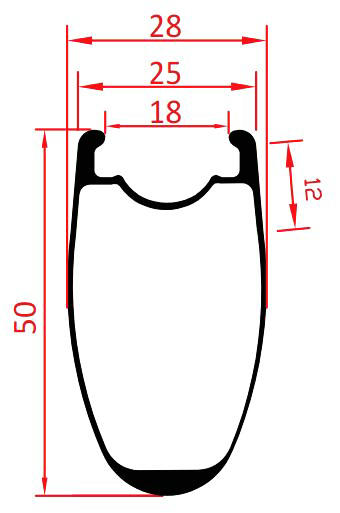

U shape 25mm wide and 50mm deep rim profile makes these road clincher bicycle rims pretty stiff, but still aerodynamic performance. Durable and aerodynamic enough for road racing, training, climbing, triathlon and also cyclocross riding.
Specification:
|
Item: |
R18-50 |
Use: |
road bike, cyclocross |
|
Rim type: |
700C clincher - *rim brake |
Material: |
Toray T700 carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
500g±20 |
|
External/Internal width: |
25mm / 18mm |
ERD: |
545mm |
|
Depth: |
50mm |
Weight limit: |
125kgs |
|
Weave: |
UD / 3k twill * |
Finish: |
Matte, glossy |
|
Spoke hole count: |
16 - 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Max tire pressure: |
130psi |
|
Decal: |
Customized |
Min tire pressure: |
80psi |
|
High TG resin temperature: |
210°C |
Standard: |
EN standard |
*See different carbon weave & finishes here.

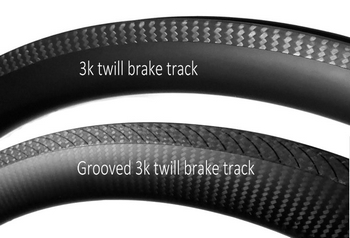

*Rim brake track available in 3k twill or grooved 3k twill surface.
Features:
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
700C road bicycle U shape 25mm wide 38mm deep clincher rim tubeless ready
Item R18-38, weight 390g/470g, ERD 569mm. Wider, stronger and faster. This road 38mm deep clincher rim is 25mm wide. The wide rim profile offers improved aerodynamics, better handling in crosswinds condition and faster riding.
Road bike 25mm wide 45mm deep rims carbon clincher tubeless compatible
Item R18-45, weight 480g, ERD 555mm. U shape aerodynamic rim profile makes this 45mm deep and 25mm wide road clincher tubeless rim better handling on corners and descents, durable for a variety of terrain.
Road carbon wheel rim 700c 60mm deep clincher tubeless compatible
Item R18-60, weight 570g, ERD 525mm. This 18mm internal width 60mm deep high profile aerodynamic rim is designed for cyclists with a love for speed. Made for winning in road racing, circuit races, time trials and triathlons.
80mm deep carbon rims road bike clincher 700c tubeless compatible
Item R18-80, weight 660g, ERD 485mm. This 80mm deep road bike clincher rim is 25mm wide, it's a trend in road and triathlon road bicycle wheels. There are many benefits for use wide bike rims for clincher wheels.
700C road bike 25mm wide U shape 30mm deep clincher tubeless ready rim
Item R18-30 (RX30S), weight 430g, ERD 585mm. This 30mm deep clincher rim is the lightest rim in 25mm wide rim brake clincher range. Wider but lower profile makes this rim unmatched aerodynamic, it has the lowest possible cross wind sensitivity.
Asymmetrical 38mm high temperature resin carbon rim for road bike wheels
Item R18-38X (RX38D), weight 470g, ERD 469mm. Asymmetric rim profile with offset spoke holes for better triangulation of spoke angles and balance of tensions in a wheel build, resulting a stronger, stiffer, more compliant and reliable road wheels.
Asymmetrical 50mm carbon fiber rims clincher with high temperature resin
Item R18-50X (RX50D), weight 500g, ERD 545mm. This U shape 25mm wide 50mm deep clincher carbon fiber rims are asymmetrical 2.5mm offset profile, using an offset rim allows for a wheel build that has its better balanced.
700C road and gravel bike U shape 28mm wide 38mm deep clincher rim
Item R21-38, weight 410g/480g, ERD 569mm. Featuring a wide 21mm internal rim width, this tubeless ready 38mm clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.
