Item No.:
D29-35Size:
700C/29erMaterial:
full carbon Toray T700 & T800Type:
clincher (tubeless ready)Brake:
disc brakeWeight:
435g±15ERD:
575mmInner width:
29mmOuter width:
36mmDepth:
35mmMax spoke tension:
140kgfMax weight limit:
120kgs / 265lbs

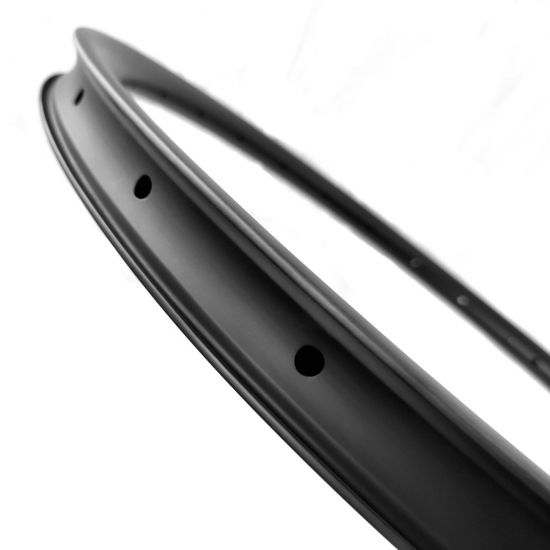

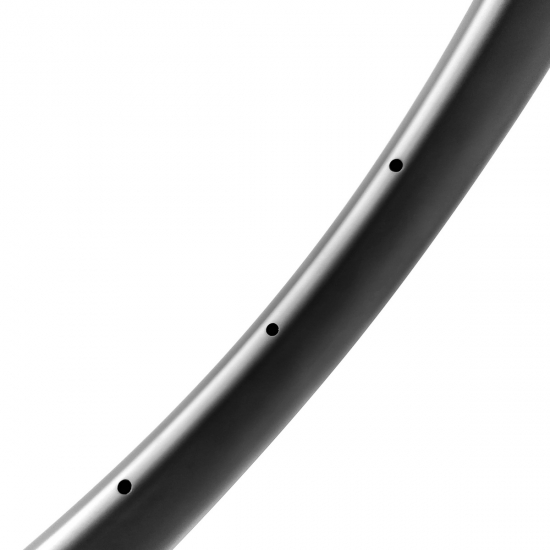

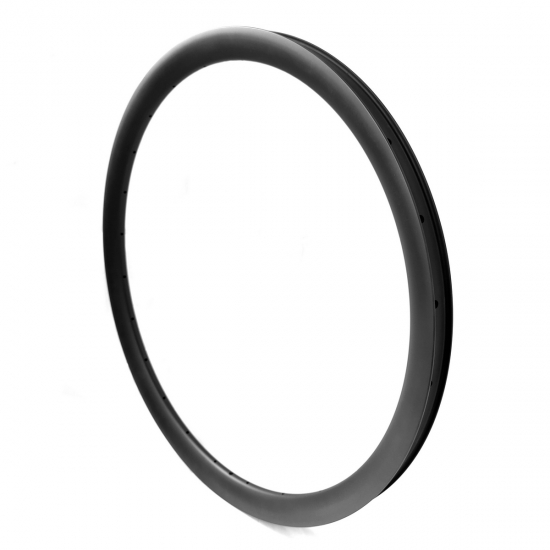

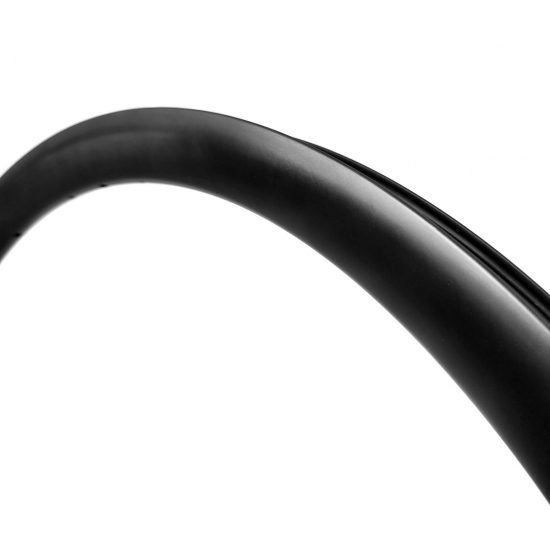

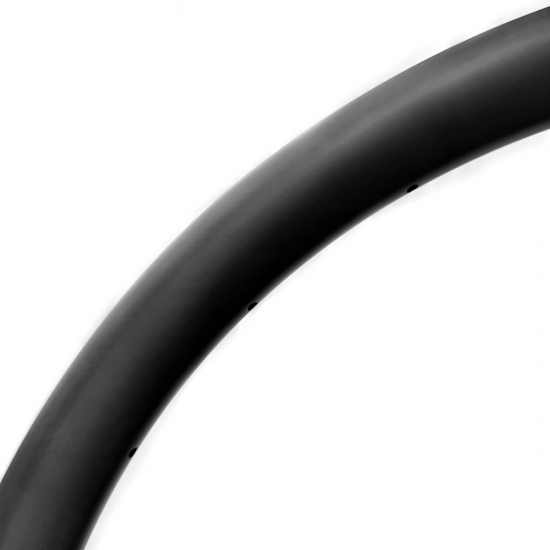

Product Item: D29-35 gravel bike disc 29mm wide 35mm deep clincher carbon rim
700C gravel bike 29mm internal width 35mm depth clincher rim, tubeless ready platform has 29mm internal width, fit for very wide tires from 35mm to 55mm.
Rim Specs
Rim Model
D29-35
Material
Toray T700 & T800 premium carbon fiber
Size
29"/700C (ETRTO 622mm)
Intended Use
Gravel/CX
Bead Type
Clincher
Tubeless Ready
Yes

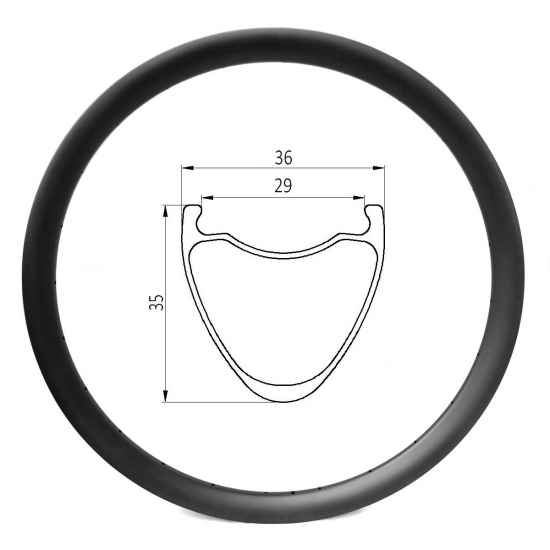

Inner/Outer Width
29mm/36mm
Depth
35mm
ERD
575mm (including nipple head dimension)
Rim Weight
435g±15
Offset
0mm (symmetric)
Max Cyclist Weight (on flat ground)
120kgs / 265lbs
Rim Weave
UD, 3k, 3k twill, 6k, Marble
Rim Finish
Matte, Glossy, Paintless
Spoke Hole Angel
±7°
Spoke Hole Diameter
2.5mm, 4.5mm or customized
Access Hole Diameter
8.5mm
Valve Hole Diameter
6.5mm
Spoke Tension
110~130kgf (recommended)
Max Tire Pressure
65psi /4.48bar (recommended max)
Recommended Tire Width
35C-55C
Decal / Paint
None or Custom graphics
Warranty
5 years
All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.
Rim Features
Warranty
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
More about Carbonal carbon rim Quality Control.
