Item No.:
D24-49Size:
700C/29erMaterial:
full carbon Toray T700 & T800Type:
clincher (tubeless ready)Brake:
disc brakeWeight:
440g±20ERD:

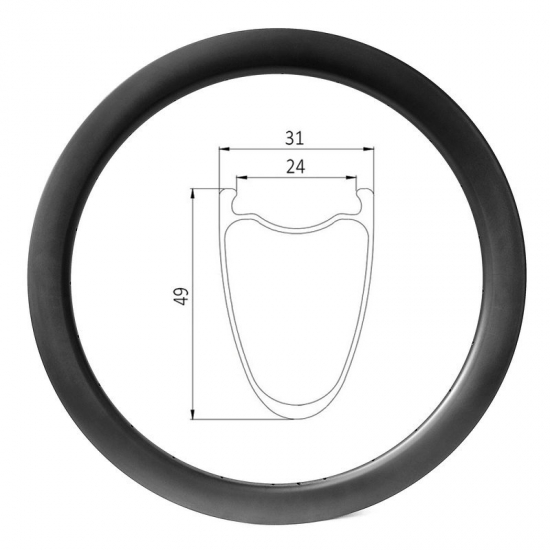

547mmInner width:
24mmOuter width:
31mmDepth:
49mmMax spoke tension:
140kgfMax weight limit:
125kgs

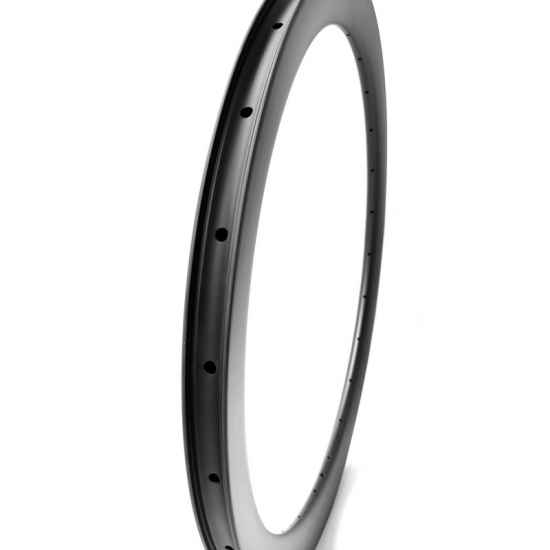

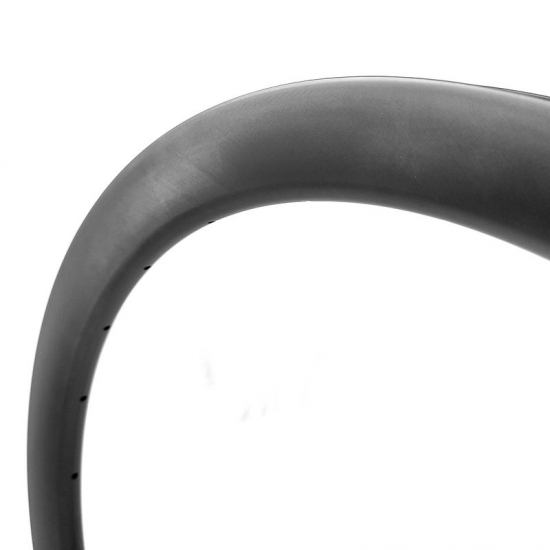

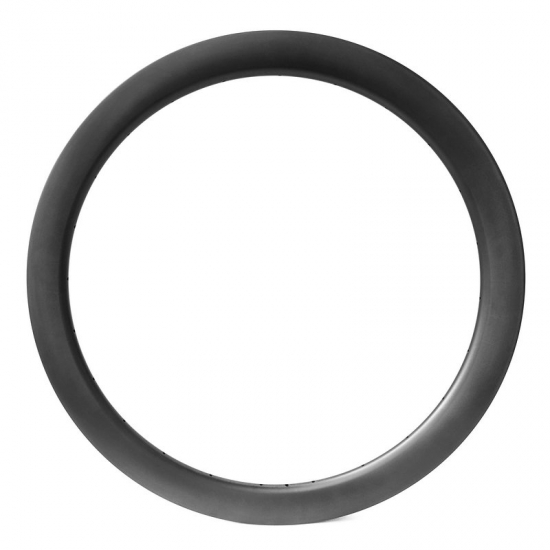

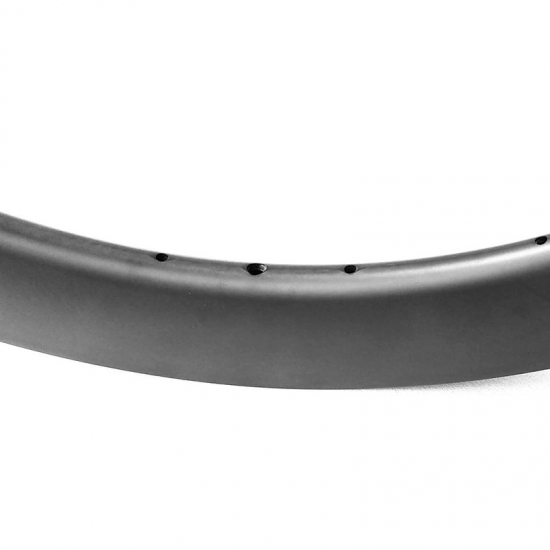

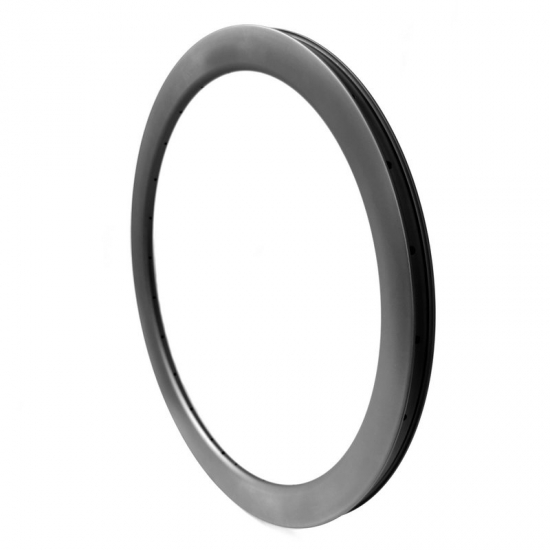

Product Item: 700c gravel bike disc 24mm internal width 49mm deep clincher carbon rim
Design with racing in mind, with a 24mm internal width and 49mm deep and stiff rim profile, this D24-49 is the answer for the gravel rider trying to squeeze out every aerodynamic advantage from their setup.
Specification:
|
Item: |
D24-49 |
Use: |
Gravel/CX |
|
Rim type: |
700C/29er clincher - disc brake |
Material: |
Toray T700 & T800 carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
440g±20 |
|
External/Internal width: |
31mm / 24mm |
ERD: |
547mm |
|
Depth: |
49mm |
Max weight limit: |
125kgs |
|
Weave: |
UD, Marble, 3k twill |
Finish: |
Matte, glossy |
|
Spoke hole count: |
16 - 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Tire size: |
27C - 50C recommended |
|
Decal: |
Customized |
Max tire pressure: |
80psi (recommended max) |
|
Standard: |
EN standard |
Warranty: |
5 years |
Features:
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
More about Carbonal carbon rim Quality Control.
D24-49 carbon rim overview
Aerodynamic 38mm deep bicycle disc brake wheel rim tubeless compatible
Item D18-38, weight 390g, ERD 569mm. This road 38mm deep bicycle disc brake wheel rim is 25mm width, wide u shape rim profile offered improved aerodynamics, and toray T800 carbon be used to make this rim stronger, lighter and stiffer for road disc brake wheels.
Carbon rim 700c clincher 45mm deep U shape for disc brake wheel
Item D18-45, weight 430g, ERD 555mm. U aerodynamic shape profile and 25mm track width makes this 700c road clincher rim better handling on corners and descents, durable for a variety of terrain. It is your best choice for a light road disc brake wheel.
Light 700c road bike 30mm deep 18mm wide tubeless disc wheel rim
Item D18-30, weight 360g, ERD 586. Wider but lower profile, constructed with premium toray T700 and T800 carbon fiber, these 700c road disc wheel rims are super lightweight and stiffness, perfect versatility.
700c road disc bike rim asymmetrical 2.5mm offset clincher tubeless ready
Item D18-38X, weight 400g, ERD 569. This disc rim features an asymmetrical rim shape. Asymmetrical rims with offset nipple bed benefit to overall wheel strength by proper balancing of the spoke bracing angles from one flange to the other.
700c disc carbon bike rim 21mm internal width 22mm deep clincher
Item D21-22,weight 350g/ 380g, ERD 601mm. Featuring a wide 21mm internal rim width,this tubeless ready 22mm deep bike clincher rim set offers a wide and stable platform for everything from road bike to gravel bike tires.
700c road disc brake 50mm deep clincher tubeless carbon rim
Item D18-50, weight 450g, ERD 545mm. 700c road disc brake 50mm deep U shape profile makes this rim pretty stiff, but still aerodynamic performance. Durable and aerodynamic enough for road racing, training, and also cyclocross riding.
D30-30H gravel bike disc 30mm wide 30mm deep hookless carbon rim
Item D30-30H, weight 420g, ERD 585mm. The D30 series represents our broadest gravel-oriented hookless carbon rim to date. The hookless rim boasts an even straighter bead and conspicuously smoother side walls, facilitating the tire's complete contact with the rim walls.
U shape 60mm deep 18mm wide clincher tubeless carbon disc rim
Item D18-60, weight 500g, ERD 525mm. U aerodynamic shape makes this carbon 60mm deep high profile and 18mm internal width disc brake clincher tubeless rim lightweight but still stiff. Made for winning in sprint finishes, time trials, triathlons and circuit races.
