Item No.:
D22-50Size:
700C/29erMaterial:
full carbon Toray T700 & T800Type:
clincher (tubeless ready)Brake:
disc brakeWeight:
425g±15ERD:
545mmInner width:
22mmOuter width:
29mmDepth:
50mmMax spoke tension:
140kgfMax weight limit:
125kgs / 276lbs

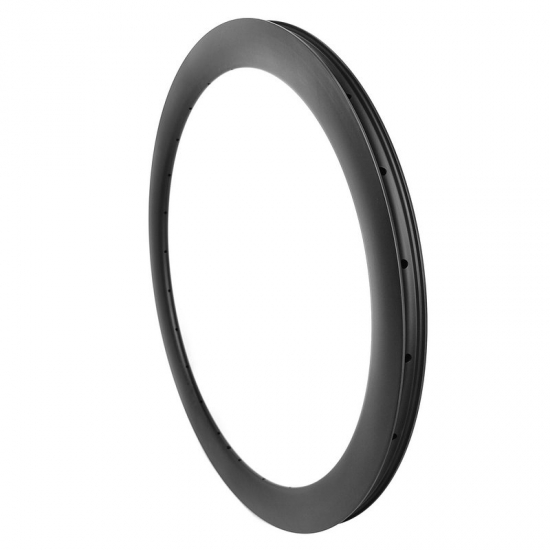

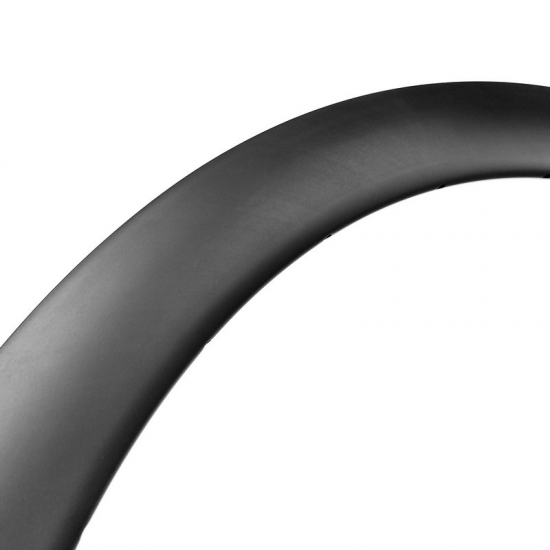

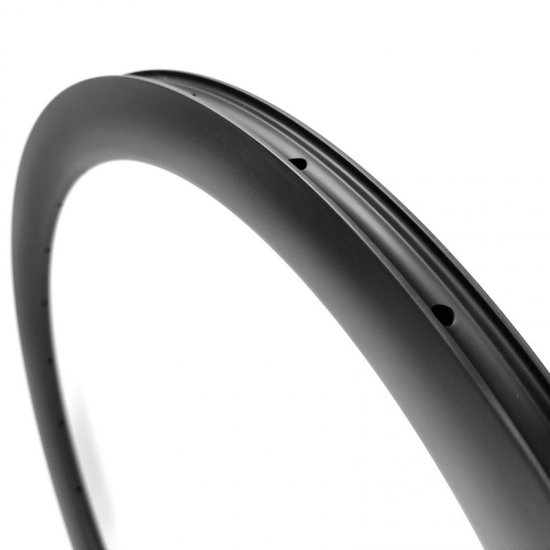

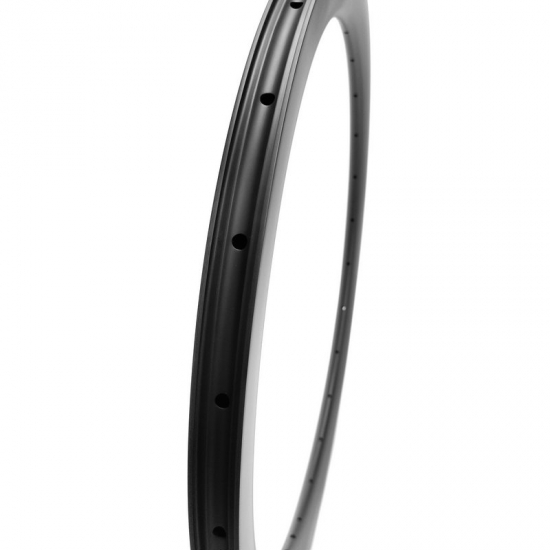

Product Item: 700c 29er disc 22mm wide 50mm deep clincher rim for road and gravel bike
New 22mm internal width 29er/700C 50mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
Rim Specs
|
Rim Model |
D22-50 |
|
Material |
Toray T700 & T800 premium carbon fiber |
|
Size |
29"/700C (ETRTO 622mm) |
|
Intended Use |
Gravel/Road/CX |
|
Bead Type |
Clincher |
|
Tubeless Ready |
Yes |
|
Inner/Outer Width |
22mm/29mm |
|
Depth |
50mm |
|
ERD |
545mm (including nipple head dimension) |
|
Rim Weight |
425g±15 |
|
Offset |
0mm (symmetric) |
|
Max Cyclist Weight (on flat ground) |
125kgs / 276lbs |
|
Rim Weave |
UD, 3k, 3k twill, 6k, Marble |
|
Rim Finish |
Matte, Glossy, Paintless |
|
Spoke Hole Angel |
±7° |
|
Spoke Hole Diameter |
2.5mm, 4.5mm or customized |
|
Access Hole Diameter |
8.5mm |
|
Valve Hole Diameter |
6.5mm |
|
Max Spoke Tension |
140kgf (recommended 110~130kgf) |
|
Max Tire Pressure |
125psi / 8.62bar (recommended max) |
|
Recommended Tire Width |
23C-48C |
|
Decal / Paint |
None or Custom graphics |
|
Warranty |
5 years |
All carbon rims are 100% customizable at Carbonal bike. If your preferred specs are not listed, feel free to contact us (sales@carbonalbike.com) with your special requirements described, we will do our best to help you.
Rim Features
Warranty
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
More about Carbonal carbon rim Quality Control.
