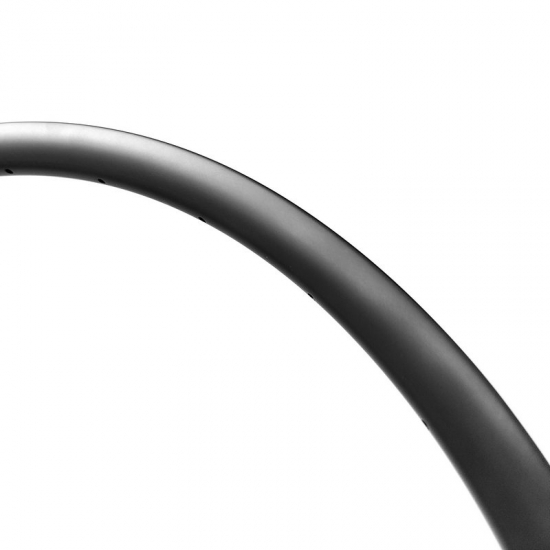

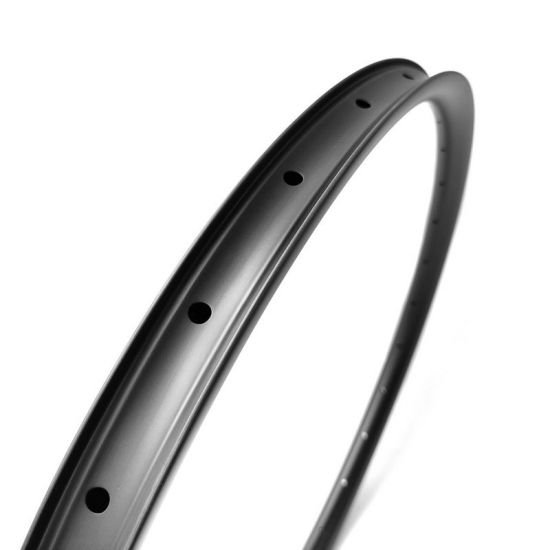

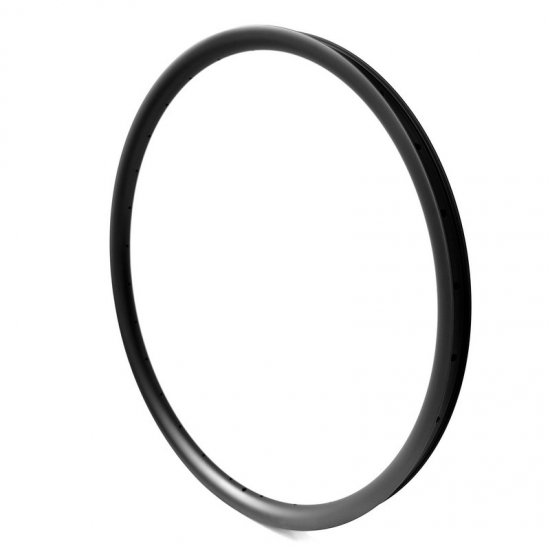

650b trail bike rim asymmetric 30mm internal width 25mm deep mtb carbon rims

Product Item: 650b trail bike rim asymmetric 30mm internal width 25mm deep mtb carbon rims

This 650b trail bike rim tubeless compatible with 30mm internal width & 25mm deep asymmetric 3mm offset rim profile, it will give you a more reliable tubeless fit, increased stiffness and significantly lower weight.

Rim Specifications:

Item:	TR730X	Use:	Trail, all mountain
Rim type:	27.5" / 650b hookless	Material:	Toray T700 & T800 carbon fiber
Tubeless ready:	Yes	Weight:	435g±20
External / Internal width:	36mm / 30mm	ERD:	557mm
Depth:	25mm	Finish:	Matte, glossy
Weight limit:	115kgs	Weave:	UD, 3k, 6k, 3k twill, marble
Spoke hole count:	16 - 36	Assemble hole diameter:	8.5mm
Spoke hole diameter:	4.5mm / 2.5mm or customized	Valve hole diameter:	6.5mm
Max spoke tension:	140kgf (recommended 110~130kgf)	Max tire pressure:	60psi / 4.1bar
Tire size:	2.2" ~ 2.7" (recommended)	Min tire pressure:	25psi / 1.75bar - read more
Decal:	Customized	Standard:	EN standard

Features:

• Impact Resistant Construction. Carbon rims feature a layer of composite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.


• Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.


• Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.

• Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.

• Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.

• Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.

• Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.

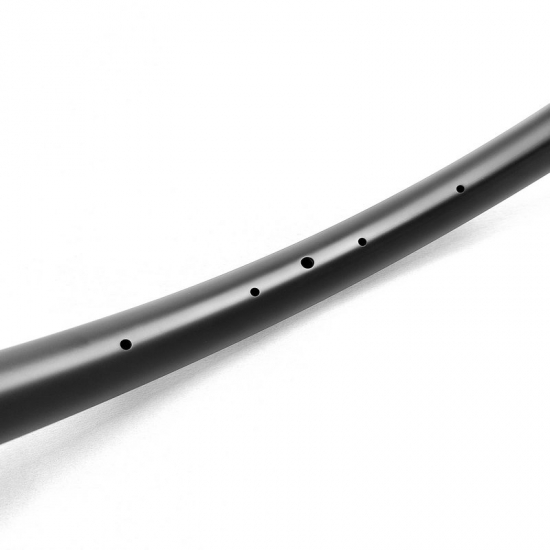

• Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim. Please retain your proof of purchase for any future warranty claims.

This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.

1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.

Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.

Read more about Carbonal carbon rim Quality Control.
