Item No.:
D22-45bSize:
27.5er / 650bMaterial:
full carbon Toray T700 & T800Type:
clincher (tubeless ready)Brake:
disc brakeWeight:
390g±15ERD:
517mmInner width:
22mmOuter width:
29mmDepth:
45mmMax spoke tension:
140kgfMax weight limit:
125kgs
Product Item: 650b road gravel bike rims 22mm internal width 45mm deep clincher carbon rim
Item D22-45b, weight 390g, ERD 517mm. New 22mm internal width 27.5er/650b 45mm depth clincher rim, born for light gravel & road bike disc brake wheel. It's tubeless ready, compatible wider tire for comfortable ride, accompany you to conquer the rugged terrain.
Specification:
|
Item: |
D22-45b |
Use: |
Gravel/Road/CX |
|
Rim type: |
27.5er/650b clincher - disc brake |
Material: |
Toray T700 & T800 carbon fiber |
|
Tubeless ready: |
Yes |
Weight: |
390g±15 |
|
External/Internal width: |
29mm / 22mm |
ERD: |
517mm |
|
Depth: |
45mm |
Max weight limit: |
125kgs |
|
Weave: |
UD, 3k twill |
Finish: |
Matte, Glossy, Paintless |
|
Spoke hole count: |
16 - 36 |
Assemble hole diameter: |
8.5mm |
|
Spoke hole diameter: |
4.5mm / 2.5mm or customized |
Valve hole diameter: |
6.5mm |
|
Max spoke tension: |
140kgf (recommended 110~130kgf) |
Tire size: |
23C - 50C recommended |
|
Decal: |
Customized |
Max tire pressure: |
125psi (recommended max) |
|
Standard: |
EN standard |
Warranty: |
5 years |
Features
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
More about Carbonal carbon rim Quality Control.

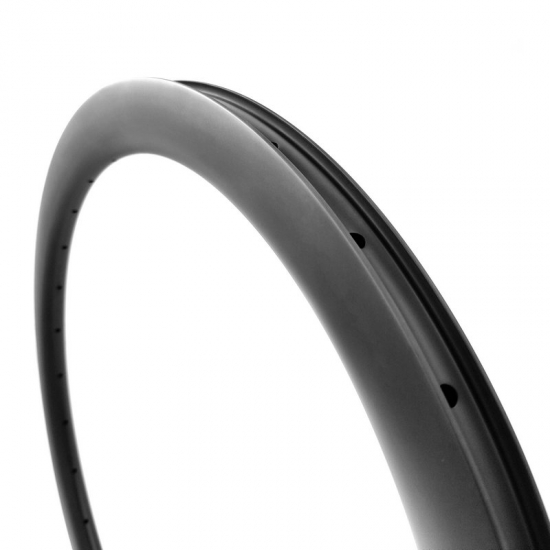

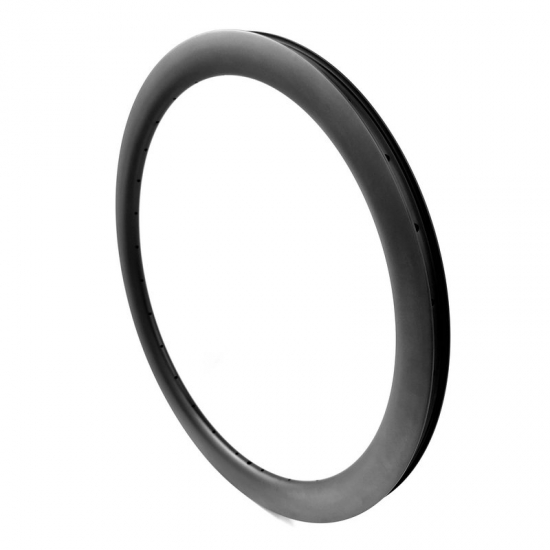

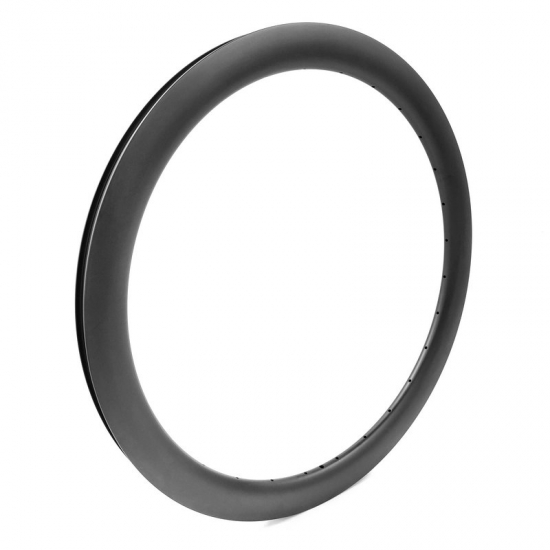

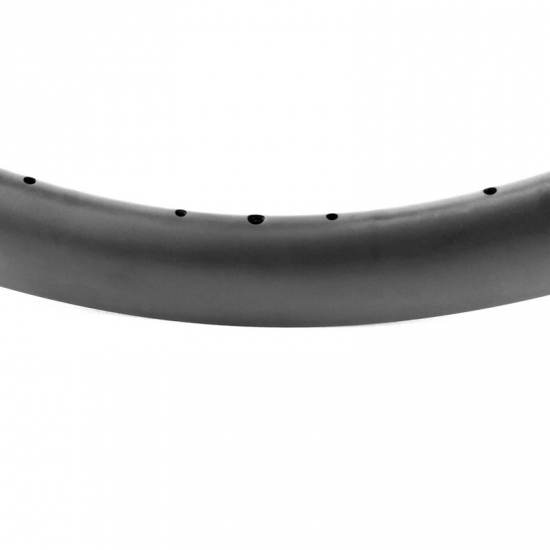

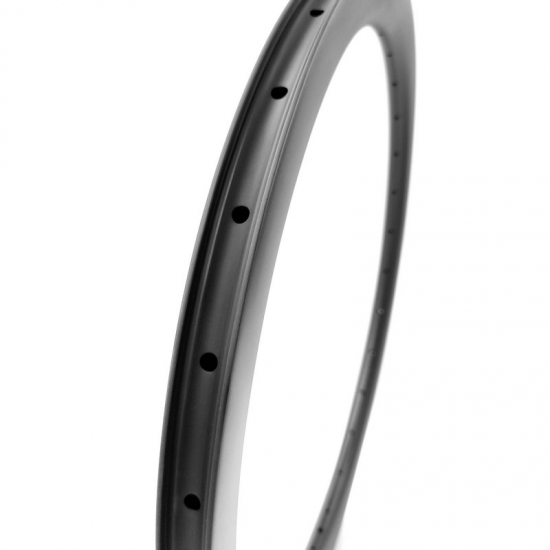

D22-45b 650b carbon rim overview
